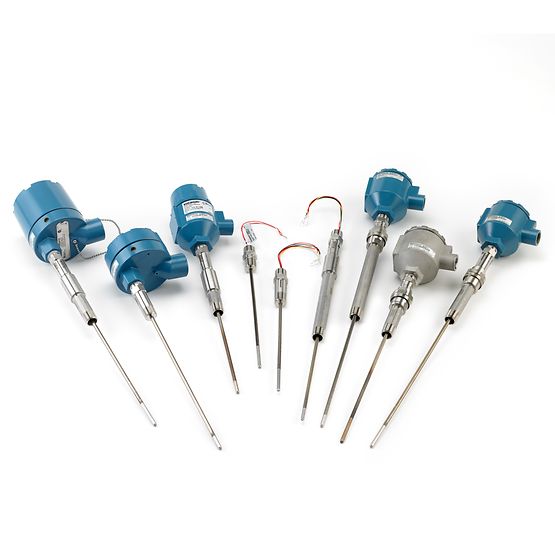

214C RTD Temperature Sensor
Product Description
The Rosemount 214C RTD Temperature Sensor is a Pt-100, single or dual element resistant temperature detector (RTD) that covers a wide range of temperatures, from -321 to 1112°F (-196 to 600°C). An exceptional solution, this sensor has a thin-film and wire-wound design for application flexibility. With many calibration options, including Class A or B sensor accuracy, this sensor also offers Callendar-Van Dusen constants for transmitter-sensor matching to provide the highest level of accuracy.
Features
- Single or dual element Pt-100 RTD with thin-film or wire-wound designs meets various application requirements
- Thin film sensor engineered to withstand high vibration industrial applications
- Wire-wound design for applications requiring high accuracy, dual-elements and/or are subjected to high temperatures
- Covers a wide range of temperatures from –321 to 1112°F (–196 to 600°C) for application flexibility
- Callendar-Van Dusen constants allow for transmitter-sensor matching and offer the highest level of accuracy
- Optional Class A accuracy ensures critical temperature measurement points meet tolerance and accuracy standards
- Adaptable design with a variety of enclosure and connection head options meet varying application demands
- Includes spring-loaded or compact spring-loaded mounting styles for adaptability
- North American approvals meet hazardous location requirements
Specifications
| Temperature Range | For wire-wound element, 0.05 °C (0.020″) maximum ice-point resistance shift after 1g vibration between 20 and 500 Hz for 150 hours according to IEC 60751:2008 |
| Lead Wires | 24 AWG wire, FEP insulated; color coded per IEC 60751 |
| Time Constant / Response | 10.8 seconds maximum required to reach 50% sensor response when tested in flowing water according to IEC 60751:2008 |
| Stability | ±0.15 °C (0.059″) maximum ice-point resistance shift following 1,000 hours at maximum specified temperature when measured per methods defined in IEC 60751:2008 |
| Insulation Resistance | 1000 MΩ minimum insulation resistance when measured at 500 VDC at room temperature |
| Calibration Options | IEC 751 Class A or B; Single point calibration; Calibration schedule or customer-specified calibration range, both with Callendar-Van Dusen constants |
Rosemount 214C Thermocouple Sensor

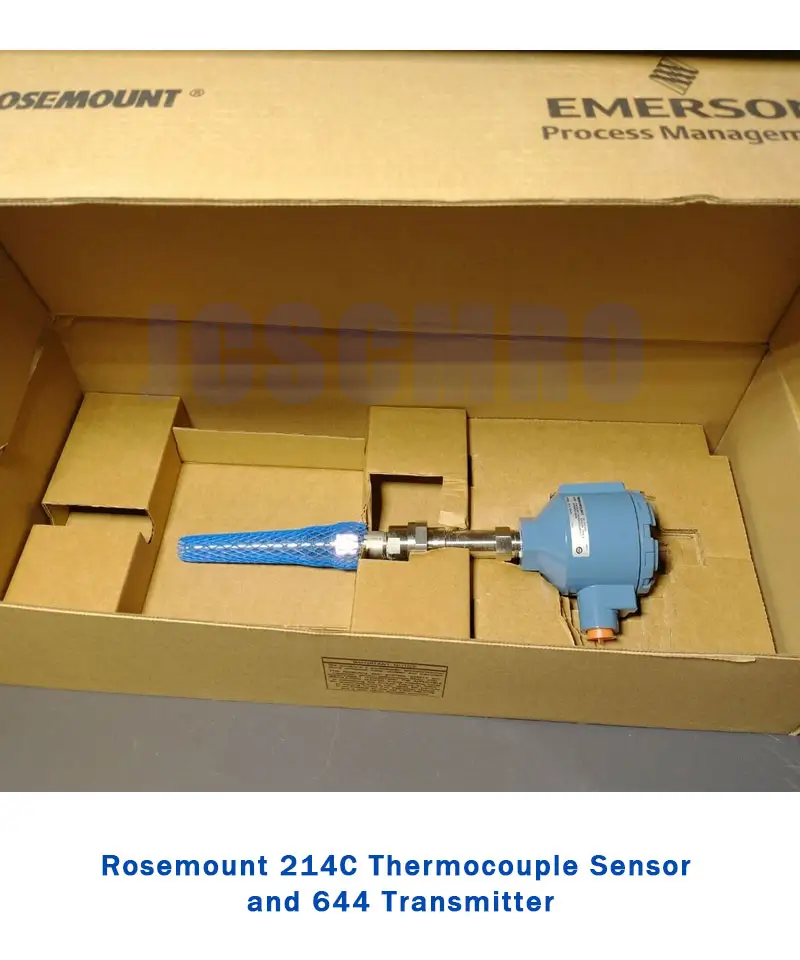

Rosemount 214C Thermocouple Sensor and Rosemount 644 Transmitter

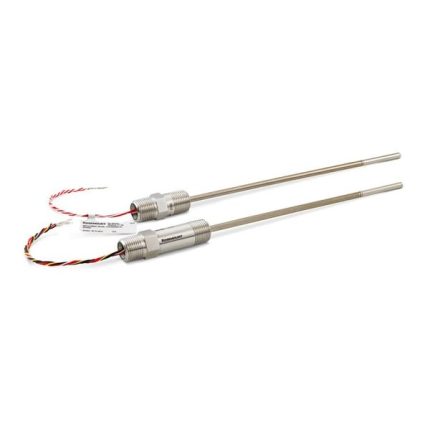

rosemount 214c rtd temperature sensor
Ideal Applications:
- Oil & Gas: Reactor/pipeline monitoring
- Pharmaceutical: Cleanroom validation
- Power Generation: Turbine protection
Procurement Advantages:
- MOQ 1 unit with 48-hour expedited delivery
- Free technical selection support & on-site installation guidance
- Volume discounts available (extra 5% for 10+ units)
Choose the Rosemount 214C for Emerson-certified quality backed by 25 years of field-proven reliability. Contact our industrial solutions specialists today for tailored recommendations!
