Part Number: 0065C20D0050D0110T44A2E7

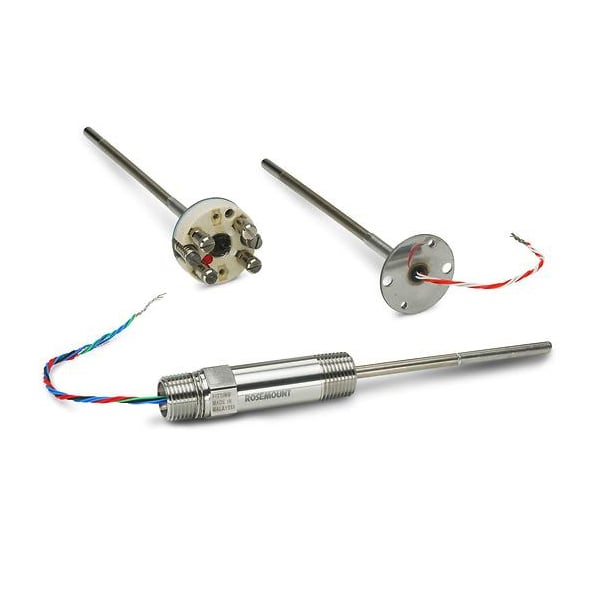

Model: 65 RTD Temperature Sensor
Manufacturer: Rosemount
Specifications
- Time Constant / Response: 9 seconds maximum required to reach 50% sensor response when tested in flowing water according to IEC 751:1983, Amendments 1 and 2
- Insulation Resistance: 1,000 MO minimum insulation resistance when measured at 500 Vdc and at room temperature
- Calibration Options: IEC 751 Class A accuracy; Calibration schedule with Callendar-Van Dusen constants; MID custody transfer calibration
Features
- Industry-standard sensor per IEC 751 with single or dual element design offers reliable and flexible performance
- Resilient sensor withstands high vibration industrial applications
- DIN-style sensor connection heads allow for quick mounting and replacement
- Sensor selections cover a wide range of temperatures from –321 to 1112°F (–196 to 600°C) to meet process demands
- Terminal block, flying leads and spring-loaded threaded adapters enable remote or integral mounting configuration
- Callendar-Van Dusen constants allow for transmitter-sensor matching and provide the highest level of accuracy
- Optional Class A accuracy ensures critical temperature measurement points meet tolerance standards and accuracy
- Option for thermowell assembly increases protection from corrosive environments
- Measurement Instrument Directive (MID) calibration options for custody transfer applications
- Global hazardous location approvals meet local requirements
- Estimated Lead Time: 4 – 6 Weeks
- Shipping Weight: 5 Kg
