Part Number: 0065D30N0225A2KDG1G3XA

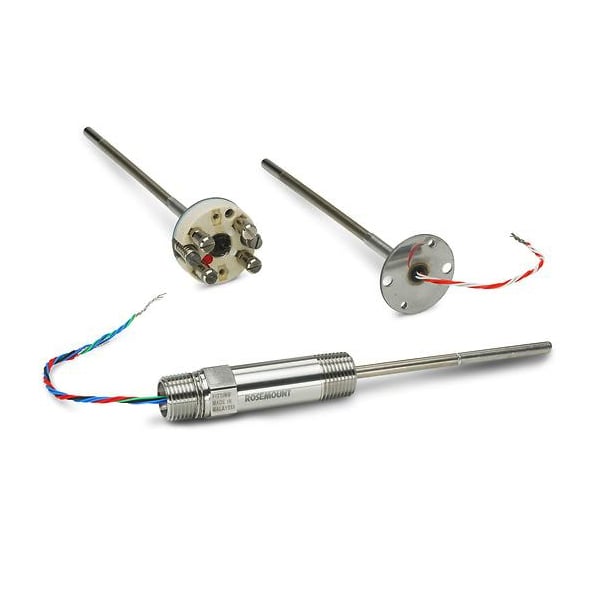

Model: 65 RTD Temperature Sensor
Manufacturer: Rosemount
Specifications
-
Time Constant / Response: 9 seconds maximum required to reach 50% sensor response when tested in flowing water according to IEC 751:1983, Amendments 1 and 2
-
Insulation Resistance: 1,000 MO minimum insulation resistance when measured at 500 Vdc and at room temperature
-
Calibration Options: IEC 751 Class A accuracy; Calibration schedule with Callendar-Van Dusen constants; MID custody transfer calibration
Features
-
Industry-standard sensor per IEC 751 with single or dual element design offers reliable and flexible performance
-
Resilient sensor withstands high vibration industrial applications
-
DIN-style sensor connection heads allow for quick mounting and replacement
-
Sensor selections cover a wide range of temperatures from –321 to 1112°F (–196 to 600°C) to meet process demands
-
Terminal block, flying leads and spring-loaded threaded adapters enable remote or integral mounting configuration
-
Callendar-Van Dusen constants allow for transmitter-sensor matching and provide the highest level of accuracy
-
Optional Class A accuracy ensures critical temperature measurement points meet tolerance standards and accuracy
-
Option for thermowell assembly increases protection from corrosive environments
-
Measurement Instrument Directive (MID) calibration options for custody transfer applications
-
Global hazardous location approvals meet local requirements
- Estimated Lead Time: 4 – 6 Weeks
- Shipping Weight: 5 Kg
