Part Number: 0065N27N0000N0210A1I1X8

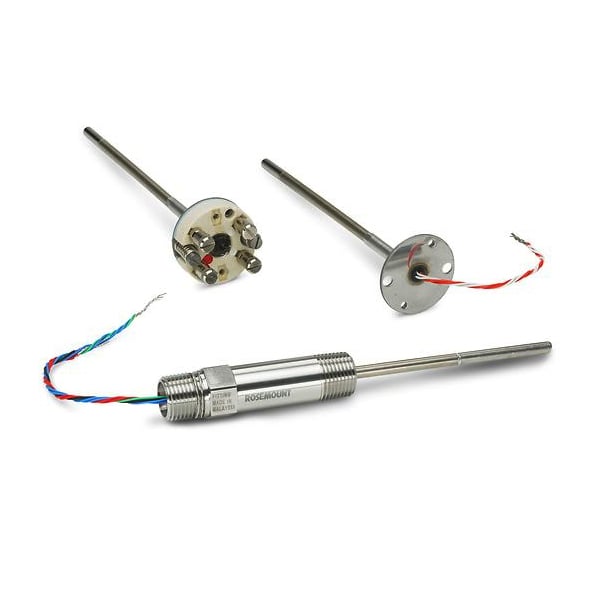

Model: 65 RTD Temperature Sensor
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Specifications
- Time Constant / Response: 9 seconds maximum required to reach 50% sensor response when tested in flowing water according to IEC 751:1983, Amendments 1 and 2
- Insulation Resistance: 1,000 MO minimum insulation resistance when measured at 500 Vdc and at room temperature
- Calibration Options: IEC 751 Class A accuracy; Calibration schedule with Callendar-Van Dusen constants; MID custody transfer calibration
Features
- Industry-standard sensor per IEC 751 with single or dual element design offers reliable and flexible performance
- Resilient sensor withstands high vibration industrial applications
- DIN-style sensor connection heads allow for quick mounting and replacement
- Sensor selections cover a wide range of temperatures from –321 to 1112°F (–196 to 600°C) to meet process demands
- Terminal block, flying leads and spring-loaded threaded adapters enable remote or integral mounting configuration
- Callendar-Van Dusen constants allow for transmitter-sensor matching and provide the highest level of accuracy
- Optional Class A accuracy ensures critical temperature measurement points meet tolerance standards and accuracy
- Option for thermowell assembly increases protection from corrosive environments
- Measurement Instrument Directive (MID) calibration options for custody transfer applications
- Global hazardous location approvals meet local requirements
Ordering Information
| Model | 0065 | Pt 100 RTD (IEC 751) without thermowell |
| Connection head | N | No connection head |
| Sensor lead wire termination | 2 | Terminal block (DIN 43762) |
| Sensor type | 7 | Sensor: 65 only
Description: RTD, single element, 3-wire vibration resistance |
| Extension | N | No extension (only available with connection head code N) |
| Extension length (N) in millimeters | 0000 | No extension (use with extension code N, W, or L) |
| Thermowell material | N | No thermowell |
| Sensor length (L) in millimeters | 0210 | 210 mm |
| Sensor options | A1 | Description: Single element class A sensor Temperature range: –50 to 300 °C (–58 to 572 °F) (0 –350 °C for sensor types 7, 9,0 ) |
| Product certifications | I1 | ATEX Intrinsic Safety Approval |
| Sensor calibration with works certificate | X8 | Sensor calibration over specified temperature range with A, B, C, and Callendar-Van Dusen constants |
- Estimated Lead Time: 12 – 14 Weeks
- Shipping Weight: 6 Kg
- Made in China
