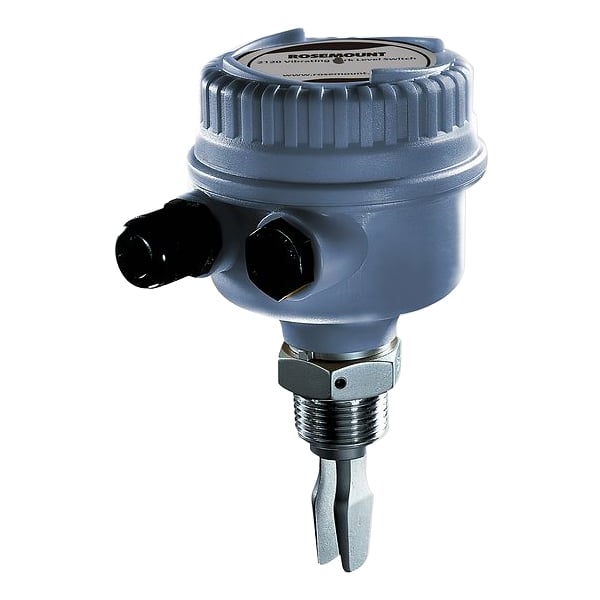

Part Number: 2120D5GV1E1SH0000Q4
Specifications
-
Communication Protocol: Direct Load, PLC/PNP, Relay, 8/16 mA, NAMUR
-
Process Media Density: Minimum 37.5 lb/ft3 (600 kg/m3)
-
Viscosity: 0.2 to 10000 cP (centiPoise)
-
Operating Pressure: Full vacuum to 1450 psi (Full vacuum to 100 bar)
-
Operating Temperature: -40 to 302 °F (-40 to 150 °C)
-
Safety:
SIL2 IEC 61508 certified
TÜV tested and WHG approved for overfill prevention -
Diagnostics Electronic: self-checking and condition monitoring
Features
-
Magnetic test point makes testing of the Rosemount 2120 easy
-
Can be operated using the sun or battery as a power source with the 12Vdc option
-
Fast drip fork design gives a quicker response time, especially with viscous liquids
-
Adjustable switching delay enables easy handling of turbulent and splashing applications
-
3-A and EHEDG certificates for hygienic applications. Compliance with FDA and ASME-BPE standards
- Estimated Lead Time: 8 – 10 Weeks
- Shipping Weight: 10 Kg
