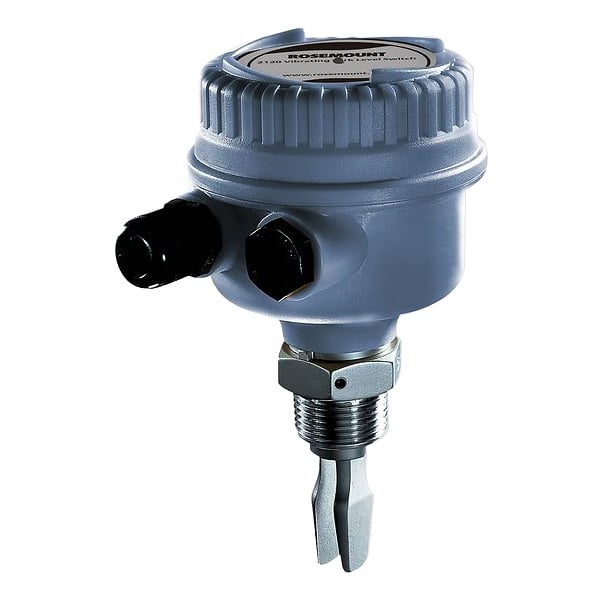

Part Number: 2120DODV1E5YM0150Q4Q8
Specifications
- Communication Protocol: Direct Load, PLC/PNP, Relay, 8/16 mA, NAMUR
- Process Media Density: Minimum 37.5 lb/ft3 (600 kg/m3)
- Viscosity: 0.2 to 10000 cP (centiPoise)
- Operating Pressure: Full vacuum to 1450 psi (Full vacuum to 100 bar)
- Operating Temperature: -40 to 302 °F (-40 to 150 °C)
- Safety:
SIL2 IEC 61508 certified
TÜV tested and WHG approved for overfill prevention - Diagnostics Electronic: self-checking and condition monitoring
Features
- Magnetic test point makes testing of the Rosemount 2120 easy
- Can be operated using the sun or battery as a power source with the 12Vdc option
- Fast drip fork design gives a quicker response time, especially with viscous liquids
- Adjustable switching delay enables easy handling of turbulent and splashing applications
- 3-A and EHEDG certificates for hygienic applications. Compliance with FDA and ASME-BPE standards
- Estimated Lead Time: 8 – 10 Weeks
- Shipping Weight: 8 Kg
