Product Number: 266DDHHSSA2BH+S26RAHG1S1SM1N1SNN

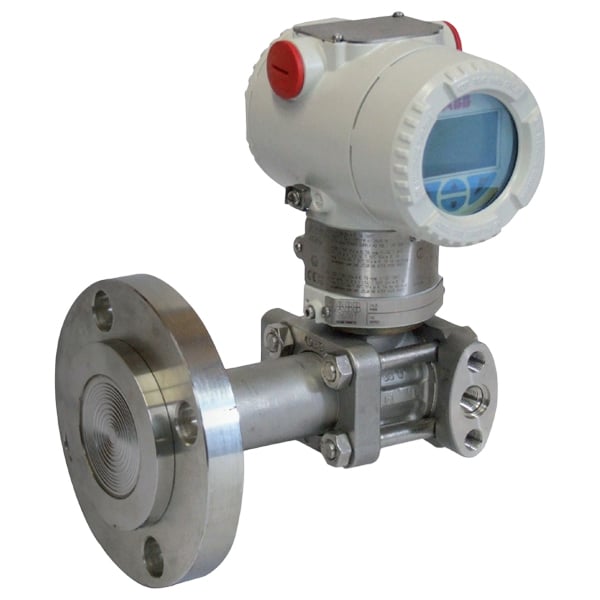

Model: 266DDH Differential Pressure Transmitter with Direct Mount Diaphragm
Manufacturer: ABB
266DDH is the differential pressure transmitter with direct-mount diaphragm seal that allows full installation capability.
Ordering Information
- Base Model: 266DDH – Differential Pressure Transmitter with direct mount seal – BASE ACCURACY 0.06%
- Sensor – Span Limits: H – 2.67 and 160 kPa; 26.7 and 1600 mbar; 10.7 and 642 inH2O
- Use code: S
- Diaphragm Material/Fill Fluid (wetted parts): S – AISI 316 L ss; Silicone oil; NACE
- Process flanges/adapters material and connection (wetted parts): A – AISI 316 L ss (Horizontal connection); 1/4 – 18 NPT-f direct; NACE1
- Bolts/Gasket (wetted parts): 2 – AISI 316 ss; PTFE1,2
- Housing material and electrical connection: B – Aluminium alloy ( barrel version); M20 x 1.5 (CM 20)
- Output/Additional options: H – HART digital communication and 4 to 20 mA; No additional options3, 4
- Surge Surge: S2 – Transient Protector
- Not available with low side diaphragm code R, 2, W
- Suitable for oxygen service
- Not available with capillary protection code A, B
- Not available with capillary protection code N
- Estimated Lead Time: 8 Weeks
- Shipping Weight: 15 Kg
