Part Number: 266DRHESRRST8

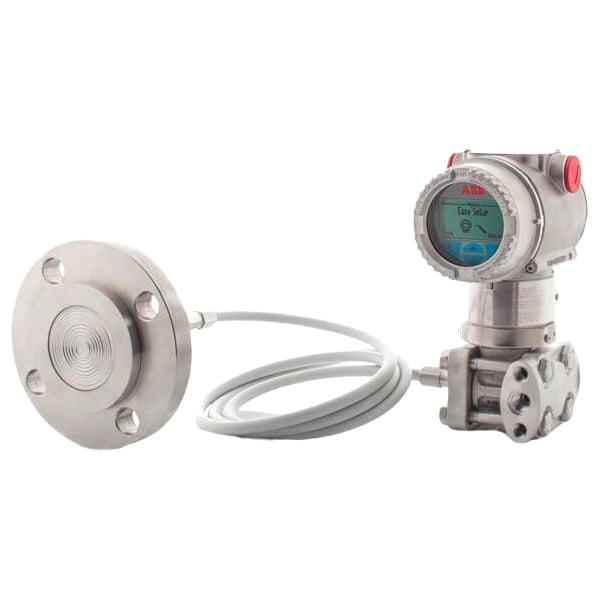

Model: 266DRH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DRH | Differential Pressure Transmitter with remote seal– BASE ACCURACY 0.06 % |
| SENSOR – Span limits | E | 0.8 and 16 kPa 8 and 160 mbar 3.2 and 64 inH2O |
| Use code | S | |
| Diaphragm material / Fill fluid (wetted parts) | R | AISI 316 L ss Silicone oil (Note 1) |
| Process flanges/adapters material and connection (wetted parts) | R | AISI 316 L ss for two seals construction (Note 2) NACE |
| Bolts/Gasket (wetted parts) | S | AISI 316 ss without gaskets for two seals construction (Note 2) |
| Housing material and electrical connection | T | AISI 316 L ss (barrel version) M20 x 1.5 (CM20) |
| Output/Additional options | 8 | HART and 4 to 20 mA Safety – certified to IEC 61508 Options requested by “Additional ordering code” (Note 3) |
Notes.
- Not wetted – Hastelloy C276™ on AISI seat for sensor code B
- Not available with low side diaphragm code S, K, M, T, A, F, C, D, L, P, 4, 5
- Not available with Housing code G, Z, W
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 20 Kg
