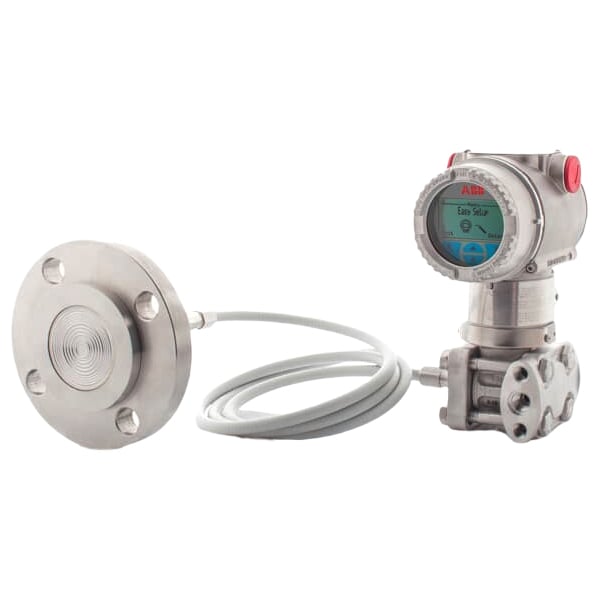

Product Number: 266DRHFSRRRA1L1
Model: Differential Pressure Transmitter
Manufacturer: ABB
Ordering Information
- Base Model: 266DRH – Differential Pressure Transmitter with remote seal – BASE ACCURACY 0.06%
- Sensor – Span Limits: F – 0.67 and 40 kPa; 6.7 and 400 mbar; 2.67 and 160 in H2O
- Use code: S
- Diaphragm Material/Fill Fluid (wetted parts): R – AISI 316 L ss; Silicone oil; NACE¹
- Process flanges/adapters material and connection (wetted parts): R – AISI 316 L ss for two seals construction; NACE²
- Bolts/Gasket (wetted parts): R – AISI 316 ss (NACE) without gaskets for two seals construction – (MWP = 16 MPa); NACE²
- Housing material and electrical connection: A – Aluminium alloy (barrel version); 1/2 – 14 NPT
- Output/Additional options: 1 – HART digital communication and 4 to 20 mA; Options requested by \’Additional ordering code\’³
- Integral LCD: L1 – Digital LCD integral display
- Not wetted ? Hastelloy C276? on AISI seat for sensor code B.
- Not available with low side diaphragm code S, K, M, T, A, F, C, D, L, P, 4, 5.
- Not available with Housing code G, Z, W.
S26RE EN diaphragm seal with rotating flange, manufactured using Taylor\’s All-Welded technology
- Transmitter Side of Connection: H – High pressure side
- Mounting Flange Rating / Size: P1 – EN 1092-1 16 bar / DN 80
- Mounting Flange Material: C – Carbon steel
- Extensions Length / Material: F – Flush
- Diaphragm Material: SM – AISI 316L SST
- Seal Surface Finish: 1 – Serrated
- Capillary Protection: A – AISI 316L SST armour
- Capillary Length: G – 4 m (13 ft)
- Fill Fluid: S – Silicone oil PMX 200 10 cSt
- Flushing Ring Hole / Thread: N – None
- Flushing Ring Material: N – None
- Flushing Ring Plug / Gasket: N – No plug / no gasket
S26RE EN diaphragm seal with rotating flange, manufactured using Taylor\’s All-Welded technology
- Transmitter Side of Connection: L – Low pressure side
- Mounting Flange Rating / Size: P1 – EN 1092-1 16 bar / DN 80
- Mounting Flange Material: C – Carbon steel
- Extensions Length / Material: F – Flush
- Diaphragm Material: SM – AISI 316L SST
- Seal Surface Finish: 1 – Serrated
- Capillary Protection: A – AISI 316L SST armour
- Capillary Length: G – 4 m (13 ft)
- Fill Fluid: S – Silicone oil PMX 200 10 cSt
- Flushing Ring Hole / Thread: N – None
- Flushing Ring Material: N – None
- Flushing Ring Plug / Gasket: N – No plug / no gasket
- Estimated Lead Time: 8 – 10 Weeks
- Shipping Weight: 25 Kg
