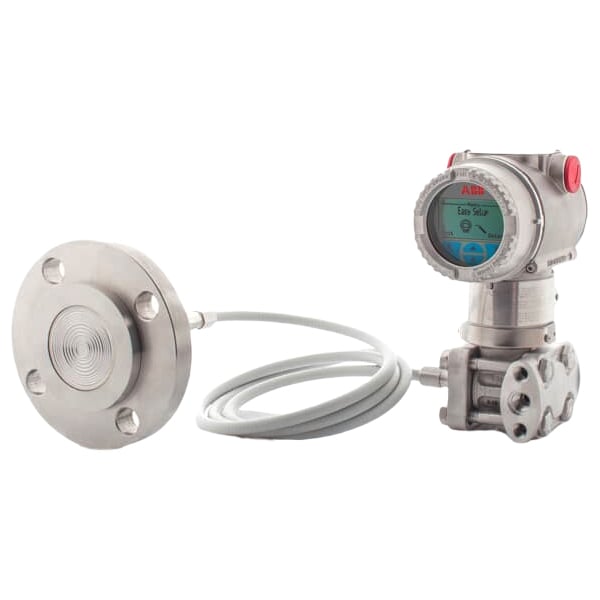

Product Number: 266DRHHSRRRA1E1L1B1C1H3
Model: Differential Pressure Transmitter
Manufacturer: ABB
Ordering Information
- Base Model: 266DRH – Differential Pressure Transmitter with remote seal – BASE ACCURACY 0.06%
- Sensor – Span Limits: H – Monel 400? (Horizontal connection); 1/2 ? 14 NPT-f through adapter; NACE 4,5
- Use code: S
- Diaphragm Material/Fill Fluid (wetted parts): R – AISI 316 L ss; Silicone oil; NACE¹
- Process flanges/adapters material and connection (wetted parts): R – AISI 316 L ss for two seals construction; NACE²
- Bolts/Gasket (wetted parts): R – AISI 316 ss (NACE) without gaskets for two seals construction – (MWP = 16 MPa); NACE²
- Housing material and electrical connection: A – Aluminium alloy (barrel version); 1/2 – 14 NPT
- Output/Additional options: 1 – HART digital communication and 4 to 20 mA; Options requested by \’Additional ordering code\’³
- Hazardous area certifications: E1 – ATEX Intrinsic Safety II 1 G and II 1/2 G Ex ia IIC T6; II 1 D Ex iaD 20 T 95°C and II 1/2D Ex iaD 21 T95°C
- Integral LCD: L1 – Digital LCD integral display
- Mounting bracket (shape and material): B1 – For pipe mounting – Carbon steel (Not suitable for AISI housing)
- Certificates (up to 2 different selections allowed): C1 – Inspection certificate EN 10204-3.1 of calibration (9-point)
- Material traceability: H3 – Inspection certificate EN 10204-3.1 of process wetted parts
- Not wetted ? Hastelloy C276? on AISI seat for sensor code B.
- Not available with low side diaphragm code S, K, M, T, A, F, C, D, L, P, 4, 5.
- Not available with Housing code G, Z, W.
- Not available with low side diaphragm code R, 2, W.
- Not available with diaphragm material/fill fluid code S, A, L.
- Estimated Lead Time: 4 – 6 Weeks
- Shipping Weight: 20 Kg
