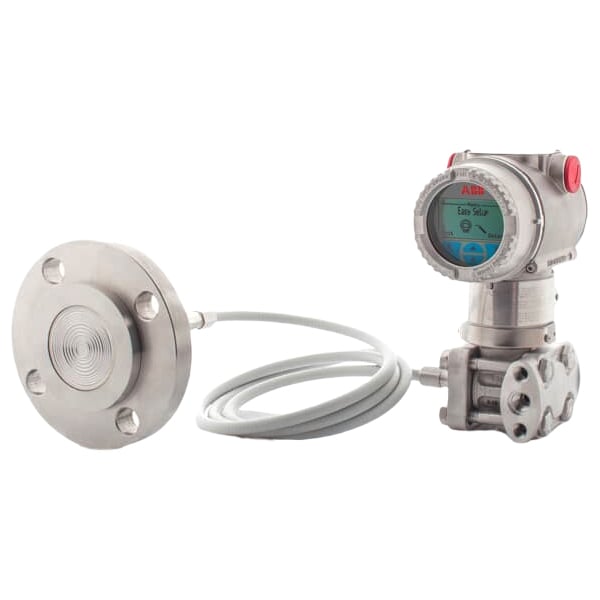

Product Number: 266DRHHSSB1A1L1
Model: Differential Pressure Transmitter
Manufacturer: ABB
Ordering Information
- Base Model: 266DRH – Differential Pressure Transmitter with remote seal – BASE ACCURACY 0.06%
- Sensor Span Limits / Base Accuracy: H – 2.67 and 160 kPa (26.7 and 1600 mbar, 10.7 and 642 in. H2O) / Base accuracy 0.075%
- Maximum Working Pressure (Static Pressure): S – Standard static
- Diaphragm Material / Fill Fluid: S – AISI 316L ss / Silicone oil (NACE)
- Process Flanges and Adapters Material/Connection: B – AISI 316L ss / 1/2 in. -14 NPT female through adapter (horizontal connection) (NACE)
- Bolts Material / Gaskets Material: 1 – AISI 316 ss / Viton
- Housing Material / Electrical Connection: A – Aluminium alloy (Barrel version) / 1/2 in. – 14 NPT
- Output: 1 – HART and 4 to 20 mA – Advanced functionality
- Integral LCD: L1 – Digital LCD integral display with integrated keypad
- Dual Use: NA: no Export Authorization required
- Feasibility check on diaphragm seal: Manufacturable solution
S26FA ASME diaphragm seal with fixed flange, manufactured using Taylor’s All-Welded technology
- Transmitter Side of Connection: H – High pressure side
- Mounting Flange Rating / Size: G1 – ASME CL 150 / 3 in.
- Mounting Flange Material: S – AISI 316L SS
- Extensions Length / Material: F – Flush
- Diaphragm Material: SM – AISI 316L SS
- Seal Surface Finish: 2 – Smooth
- Capillary Protection: N – Extension tube for direct mount seal
- Capillary Length: 1 – Direct-mount construction
- Fill Fluid: S – Silicone oil PMX 200 10 cSt
- Flushing Ring Hole / Thread: N – None
- Flushing Ring Material: N – None
- Flushing Ring Plug / Gasket: N – No plug / No gasket
- Estimated Lead Time: 12 Weeks
- Shipping Weight: 20 Kg
- Country of Origin: Made in Italy
