Part Number: 266DRHPSSBA7LSB2

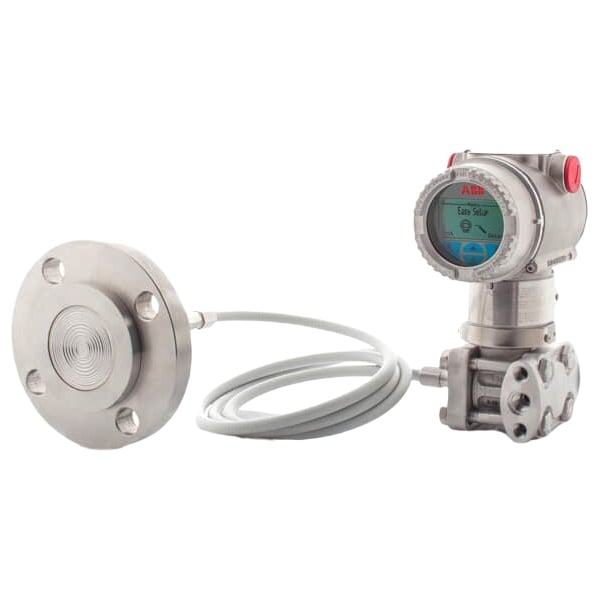

Model: 266DRH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DRH | Differential Pressure Transmitter with remote seal– BASE ACCURACY 0.06 % |
| SENSOR – Span limits | P | 40 and 2400 kPa 0.4 and 24 bar 5.8 and 348 psi |
| Use code | S | |
| Diaphragm material / Fill fluid (wetted parts) | S | AISI 316 L ss Silicone oil (Note 1) NACE |
| Process flanges/adapters material and connection (wetted parts) | B | AISI 316 L ss for two seals construction 1/2 – 14 NPT-f through adapter (Note 2) NACE |
| Bolts/Gasket (wetted parts) | A | |
| Housing material and electrical connection | T | AISI 316 L ss (barrel version) M20 x 1.5 (CM20) |
| Output/Additional options | 8 | HART and 4 to 20 mA Safety – certified to IEC 61508 Options requested by “Additional ordering code” (Note 3) |
Notes.
- Not wetted – Hastelloy C276™ on AISI seat for sensor code B
- Not available with low side diaphragm code R, 2, W
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 6 Kg
