Part Number: 266DSHBSHA2B2L1

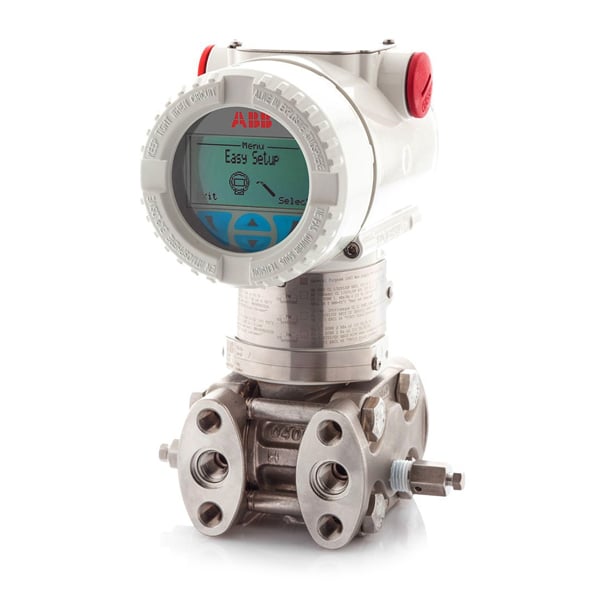

Model: 266DSH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DSH | Differential Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | B | 0.2 and 4 kPa 2 and 40 mbar 0.8 and 16 inH2O (Notes 1, 2) |
| Application | S | Differential measurement at standard static pressure |
| Diaphragm material / Fill fluid (wetted parts) | H | Hastelloy® C-276 (on AISI seat) Silicone oil (Note 1) NACE |
| Process flanges/adapters material and connection (wetted parts) | A | AISI 316 L ss (Horizontal connection) 1/4 in. – 18 NPT-f direct NACE |
| Bolts/Gasket (wetted parts) | 2 | For standard static, high static and gauge versions AISI 316 ss PTFE (Notes 2, 3, 4, 5) NACE (non exposed) |
| Housing material and electrical connection | B | Aluminium alloy ( barrel version) M20 x 1.5 (CM 20) (TO BE USED for WirelessHART) (Notes 2) |
| Output/Additional options | 2 | PROFIBUS PA (includes option R1) |
| Integral LCD | L1 | Digital LCD integral display with integrated keypad (Note 3) |
Notes.
- Not available with high static pressure code H
- Not available NSF/ANSI 61 approval code YN
- Not available with Output code 7
- Estimated Lead Time: 12 – 14 Weeks
- Shipping Weight: 8 Kg
