Part Number: 266DSHBSKB1B7E1LSR1B2

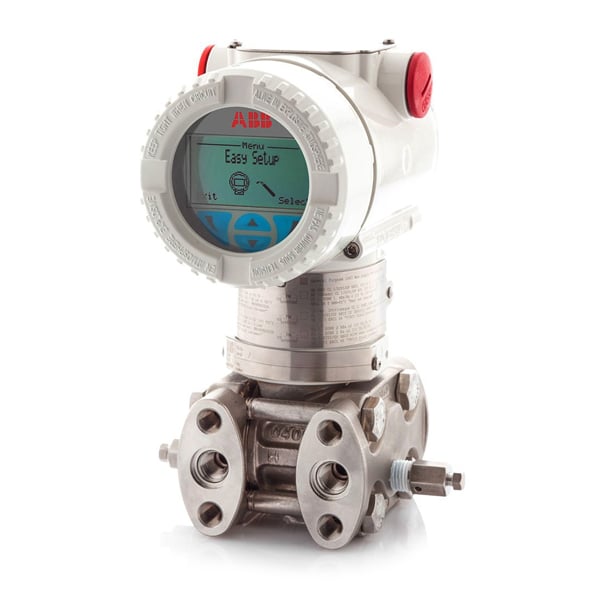

Model: 266DSH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DSH | Differential Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | B | 0.2 and 4 kPa 2 and 40 mbar 0.8 and 16 inH2O (Notes 1, 2) |
| Application | S | Differential measurement at standard static pressure |
| Diaphragm material / Fill fluid (wetted parts) | K | Hastelloy® C-276 Silicone oil (Note 2) NACE |
| Process flanges/adapters material and connection (wetted parts) | B | AISI 316 L ss (Horizontal connection) 1/2 in. – 14 NPT-f through adapter NACE |
| Bolts/Gasket (wetted parts) | 1 | For standard static, high static and gauge versions AISI 316 ss Viton® (Notes 2, 3, 4, 5) NACE (non exposed) |
| Housing material and electrical connection | B | Aluminium alloy ( barrel version) M20 x 1.5 (CM 20) (TO BE USED for WirelessHART) (Notes 2) |
| Output/Additional options | 7 | HART and 4 to 20 mA – Standard functionality |
| Hazardous area certifications (see relevant paragraph for complete detailed markings) | E1 | ATEX Intrinsic Safety Ex ia (Note 2) |
| Integral LCD | LS | Integrated digital LCD display (ONLY SELECTABLE WITH OUTPUT CODE 7) (Note 6) |
| External non intrusive Z, S and WP pushbuttons | R1 | Transmitters with external pushbutton (ONLY SELECTABLE WITH OUTPUT CODE 7) |
| Mounting bracket (shape and material) | B2 | For pipe/wall mounting – AISI 316 L ss (Note 5) |
Notes.
- Not available with high static pressure code H
- Not available NSF/ANSI 61 approval code YN
- Not available with sensor code A
- Not available with Process Flanges/Adapters material/connection code P, Z
- Not available with flange mounted version – Process flanges/adapters material/connection code R
- Not available with Hazardous area certification code WM, WN, WP
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 8 Kg
