Part Number: 266DSHBSSA3BFE1L1B2

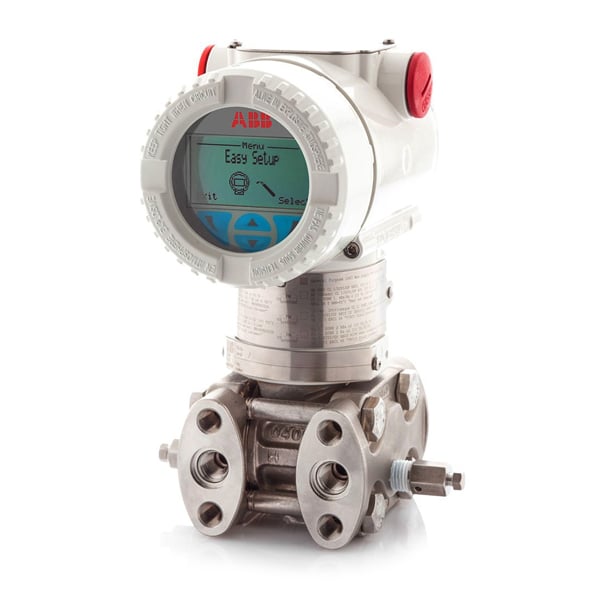

Model: 266DSH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DSH | Differential Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | B | 0.2 and 4 kPa 2 and 40 mbar 0.8 and 16 inH2O (Note 1) (Note 2) |
| Application | S | Differential measurement at standard static pressure |
| Diaphragm material / Fill fluid (wetted parts) | S | AISI 316 L ss Silicone oil (Note 3) NACE |
| Process flanges/adapters material and connection (wetted parts) | A | AISI 316 L ss (Horizontal connection) 1/4 in. – 18 NPT-f direct NACE |
| Bolts/Gasket (wetted parts) | 3 | For standard static, gauge and flange mounted versions AISI 316 ss – MWP = 16 MPa Viton® (Notes 2, 4) NACE |
| Housing material and electrical connection | B | Aluminium alloy ( barrel version) M20 x 1.5 (CM 20) (TO BE USED for WirelessHART) (Notes 2) |
| Output/Additional options | F | |
| Hazardous area certifications (see relevant paragraph for complete detailed markings) | E1 | ATEX Intrinsic Safety Ex ia (Note 2) |
| Integral LCD | L1 | Digital LCD integral display with integrated keypad (Note 5) |
| Mounting bracket (shape and material) | B2 | For pipe/wall mounting – AISI 316 L ss (Note 6) |
Notes.
- Not available with high static pressure code H
- Not available NSF/ANSI 61 approval code YN
- Not available with sensor code A and B
- Not available with Process Flanges/Adapters material/connection code P, Z
- Not available with Output code 7
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 6 Kg
