Part Number: 266DSHESSB1S1V1E4L1B2

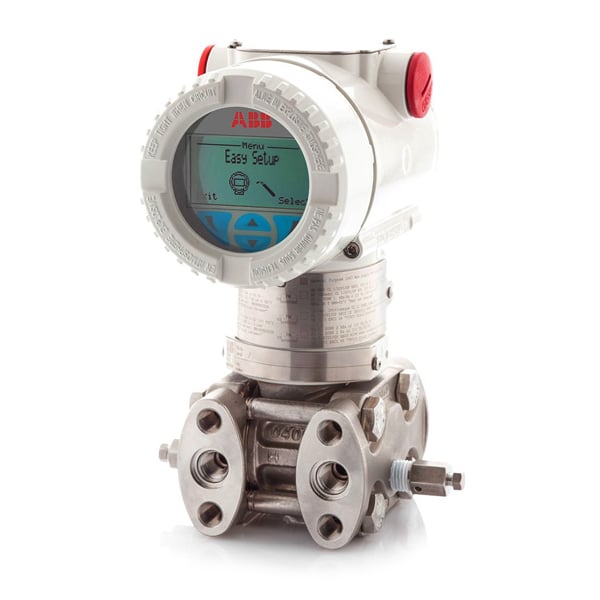

Model: 266DSH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DSH | Differential Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | E | 0.54 and 16 kPa 5.4 and 160 mbar 2.16 and 64 inH2O (Note 1) |
| Application | S | Differential measurement at standard static pressure |
| Diaphragm material / Fill fluid (wetted parts) | S | AISI 316 L ss Silicone oil (Note 2) NACE |
| Process flanges/adapters material and connection (wetted parts) | B | AISI 316 L ss (Horizontal connection) 1/2 in. – 14 NPT-f through adapter NACE |
| Bolts/Gasket (wetted parts) | 1 | For standard static, high static and gauge versions AISI 316 ss Viton® (Notes 3, 4, 5, 6) NACE (non exposed) |
| Housing material and electrical connection | S | AISI 316 L ss ( barrel version) (I2 or I3 required) 1/2 in. – 14 NPT (Notes 7) |
| Output/Additional options | 1 | HART and 4 to 20 mA – Advanced functionality (includes option R1) |
| Drain/vent valve (material and position) (wetted parts) | V1 | AISI 316 L ss on process axis (Notes 4, 8) NACE |
| Hazardous area certifications (see relevant paragraph for complete detailed markings) | E4 | FM Approvals (Canada) approval (XP, DIP, IS, NI, Type N) (Note 7, 9) |
| Integral LCD | L1 | Digital LCD integral display with integrated keypad (Note 10) |
| Mounting bracket (shape and material) | B2 | For pipe/wall mounting – AISI 316 L ss (Note 5) |
Notes.
- Not available with high static pressure code H
- Not available with sensor code A and B
- Not available with sensor code A
- Not available with Process Flanges/Adapters material/connection code P, Z
- Not available with flange mounted version – Process flanges/adapters material/connection code R
- Not available NSF/ANSI 61 approval code YN
- Not available with Output code 9
- Not available with Process flanges/adapters material/connection code D, E, G, H, Q, T, M, S, U, V
- Not available with Housing code J
- Not available with Output code 7
- Estimated Lead Time: 8 – 10 Weeks
- Shipping Weight: 6 Kg
