Part Number: 266DSHFSSA1A1L1B1M5

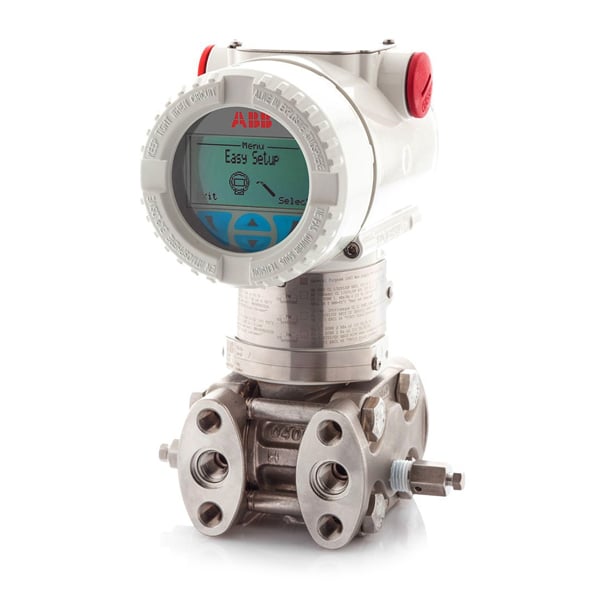

Model: 266DSH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DSH | Differential Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | F | 0.4 and 40 kPa 4 and 400 mbar 1.6 and 160 inH2O |
| Application | S | Differential measurement at standard static pressure |
| Diaphragm material / Fill fluid (wetted parts) | S | AISI 316 L ss Silicone oil (Note 1) NACE |
| Process flanges/adapters material and connection (wetted parts) | A | AISI 316 L ss (Horizontal connection) 1/4 in. – 18 NPT-f direct NACE |
| Bolts/Gasket (wetted parts) | 1 | For standard static, high static and gauge versions AISI 316 ss Viton® (Notes 2, 3, 4, 5) NACE (non exposed) |
| Housing material and electrical connection | A | Aluminium alloy ( barrel version) 1/2 in. – 14 NPT (Notes 6) |
| Output/Additional options | 1 | HART and 4 to 20 mA – Advanced functionality (includes option R1) |
| Integral LCD | L1 | Digital LCD integral display with integrated keypad (Notes 7) |
| Mounting bracket (shape and material) | B1 | For pipe/wall mounting – Carbon steel (Not suitable for AISI housing) (Notes 4) |
| Operating manual (multiple selection allowed) | M5 | English |
Notes.
- Not available with sensor code A and B
- Not available with sensor code A
- Not available with Process Flanges/Adapters material/connection code P, Z
- Not available with flange mounted version – Process flanges/adapters material/connection code R
- Not available NSF/ANSI 61 approval code YN
- Not available with Output code 9
- Not available with Output code 7
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 6 Kg
