Part Number: 266DSHHHSB1A1L5B2I2

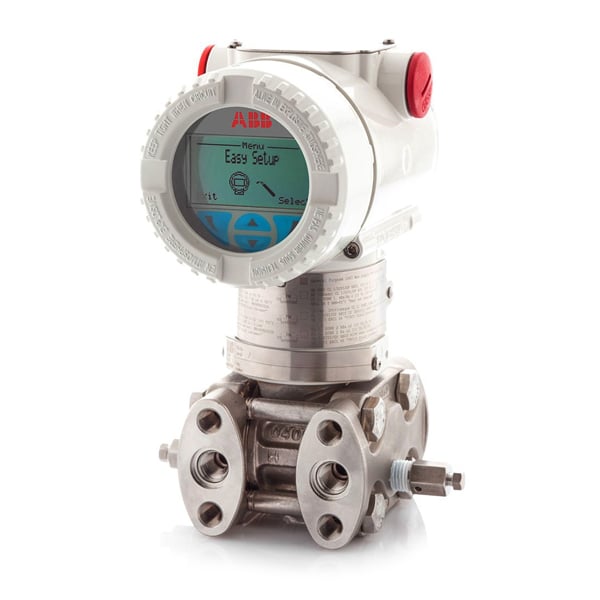

Model: 266DSH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DSH | Differential Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | H | 1.6 and 160 kPa 16 and 1600 mbar 6.4 and 642 inH2O |
| Application | H | Differential measurement at high static pressure (REMARK) (Note 1) |
| Diaphragm material / Fill fluid (wetted parts) | S | AISI 316 L ss Silicone oil (Note 2) NACE |
| Process flanges/adapters material and connection (wetted parts) | B | AISI 316 L ss (Horizontal connection) 1/2 in. – 14 NPT-f through adapter NACE |
| Bolts/Gasket (wetted parts) | 1 | For standard static, high static and gauge versions AISI 316 ss Viton® (Notes 3, 4, 5, 6) NACE (non exposed) |
| Housing material and electrical connection | A | Aluminium alloy ( barrel version) 1/2 in. – 14 NPT (Notes 7) |
| Output/Additional options | 1 | HART and 4 to 20 mA – Advanced functionality (includes option R1) |
| Integral LCD | L5 | Digital LCD integral display with TTG (Through-The-Glass) activated keypad (Note 8) |
| Mounting bracket (shape and material) | B2 | For pipe/wall mounting – AISI 316 L ss (Note 9) |
| Additional tag plate | I2 | Tag and certification stainless steel plates (laser printed) |
Notes.
- Not available NSF/ANSI 61 approval code YN.
- Not available with sensor code A and B
- Not available with sensor code A
- Not available with Process Flanges/Adapters material/connection code P, Z
- Not available with flange mounted version – Process flanges/adapters material/connection code R
- Not available NSF/ANSI 61 approval code YN
- Not available with Output code 9
- Not available with Output code 7
- Not available with flange mounted version – Process flanges/adapters material/connection code R
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 8 Kg
