Part Number: 266DSHHSSA2A1V1L1B1S2

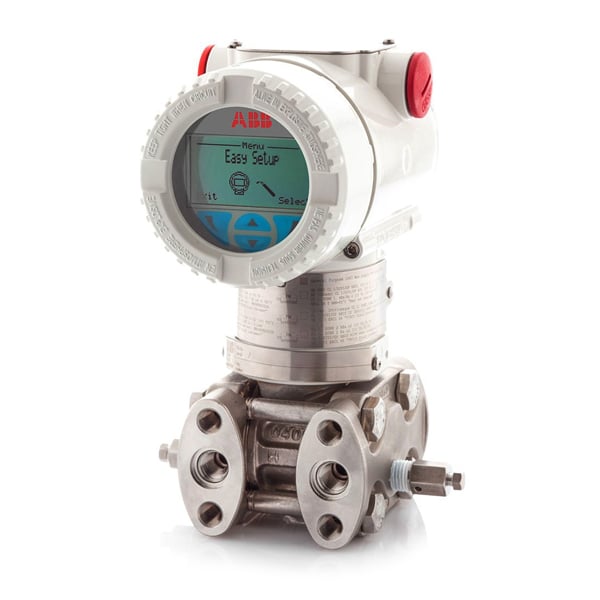

Model: 266DSH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DSH | Differential Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | H | 1.6 and 160 kPa 16 and 1600 mbar 6.4 and 642 inH2O |
| Application | S | Differential measurement at standard static pressure |
| Diaphragm material / Fill fluid (wetted parts) | S | AISI 316 L ss Silicone oil (Note 1) NACE |
| Process flanges/adapters material and connection (wetted parts) | A | AISI 316 L ss (Horizontal connection) 1/4 in. – 18 NPT-f direct NACE |
| Bolts/Gasket (wetted parts) | 2 | For standard static, high static and gauge versions AISI 316 ss PTFE (Notes 2, 3, 4, 5) NACE (non exposed) |
| Housing material and electrical connection | A | Aluminium alloy ( barrel version) 1/2 in. – 14 NPT (Notes 6) |
| Output/Additional options | 1 | HART and 4 to 20 mA – Advanced functionality (includes option R1) |
| Drain/vent valve (material and position) (wetted parts) | V1 | AISI 316 L ss on process axis (Note 4, 7) NACE |
| Integral LCD | L1 | Digital LCD integral display with integrated keypad (Note 8) |
| Mounting bracket (shape and material) | B1 | For pipe/wall mounting – Carbon steel (Not suitable for AISI housing) (Note 5) |
| Surge | S2 | Surge/Transient Protector (Note 6) |
Notes.
- Not available with sensor code A and B
- Suitable for oxygen service
- Not available with sensor code A
- Not available with Process Flanges/Adapters material/connection code P, Z
- Not available with flange mounted version – Process flanges/adapters material/connection code R
- Not available with Output code 9
- Not available with Process flanges/adapters material/connection code D, E, G, H, Q, T, M, S, U, V
- Not available with Output code 7
- Estimated Lead Time: 12 – 14 Weeks
- Shipping Weight: 8 Kg
