Part Number: 266DSHMHSA4A1L5B

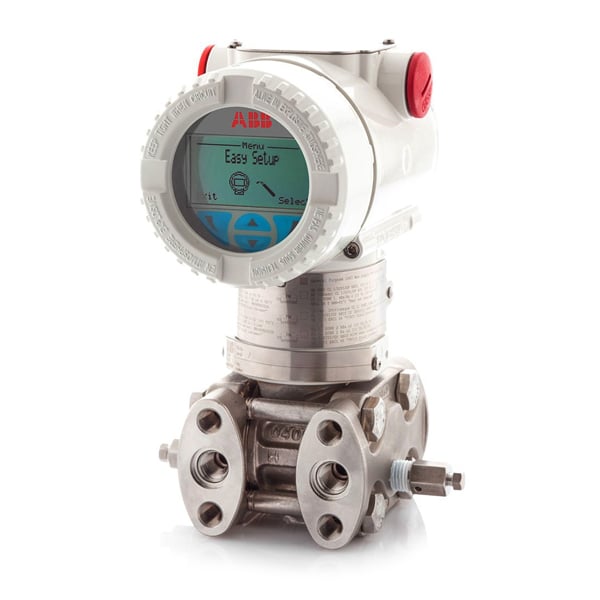

Model: 266DSH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DSH | Differential Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | M | 6 and 600 kPa 0.06 and 6 bar 0.87 and 87 psi |
| Application | H | Differential measurement at high static pressure (REMARK) (Note 1) |
| Diaphragm material / Fill fluid (wetted parts) | S | AISI 316 L ss Silicone oil (Note 2) NACE |
| Process flanges/adapters material and connection (wetted parts) | A | AISI 316 L ss (Horizontal connection) 1/4 in. – 18 NPT-f direct NACE |
| Bolts/Gasket (wetted parts) | 4 | For standard static, gauge and flange mounted versions AISI 316 ss – MWP = 16 MPa PTFE (Notes 3, 4) NACE (non exposed) |
| Housing material and electrical connection | A | Aluminium alloy (barrel version) 1/2 in. – 14 NPT (Notes 5) |
| Output/Additional options | 1 | HART and 4 to 20 mA – Advanced functionality (includes option R1) |
| Integral LCD | L5 | Digital LCD integral display with TTG (Through-The-Glass) activated keypad (Note 6) |
| Mounting bracket (shape and material) | B | |
Notes.
- Not available NSF/ANSI 61 approval code YN.
- Not available with sensor code A and B
- Suitable for oxygen service.
- Not available with Process Flanges/Adapters material/connection code P, Z
- Not available with Output code 9
- Not available with Hazardous area certification code WM, WN, WP
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 8 Kg
