Part Number: 266DSHQHSQ2T3E1L1B5S2I2C1C5H3

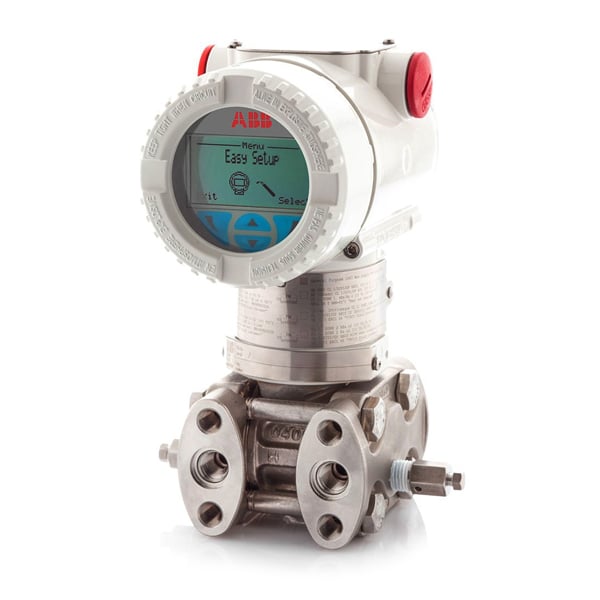

Model: 266DSH Differential Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266DSH | Differential Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limits | Q | 80 and 8000 kPa 0.8 and 80 bar 11.6 and 1160 psi |
| Application | H | Differential measurement at high static pressure (REMARK) (Note 1) |
| Diaphragm material / Fill fluid (wetted parts) | S | AISI 316 L ss Silicone oil (Note 2) NACE |
| Process flanges/adapters material and connection (wetted parts) | Q | AISI 316 L ss (Vertical connection) 1/4 in. – 18 NPT-f direct (Note 3) NACE |
| Bolts/Gasket (wetted parts) | 2 | For standard static, high static and gauge versions AISI 316 ss PTFE (Notes 4, 5, 6, 7) NACE (non exposed) |
| Housing material and electrical connection | T | AISI 316 L ss ( barrel version) (I2 or I3 required) M20 x 1.5 (CM20) (TO BE USED for WirelessHART) (Notes 1) |
| Output/Additional options | 3 | FOUNDATION Fieldbus (includes option R1) |
| Hazardous area certifications (see relevant paragraph for complete detailed markings) | E1 | ATEX Intrinsic Safety Ex ia (Note 1) |
| Integral LCD | L1 | Digital LCD integral display with integrated keypad (Note 8) |
| Mounting bracket (shape and material) | B5 | Flat type for box – AISI 316 ss (Note 7) |
| Surge | S2 | Surge/Transient Protector (Note 9) |
| Additional tag plate | I2 | Tag and certification stainless steel plates (laser printed) |
| Certificates (multiple selection allowed) | C1 C5 |
Inspection certificate EN 10204–3.1 of calibration (9-point) Inspection certificate EN 10204–3.1 of the pressure test |
| Material traceability | H3 | Inspection certificate EN 10204–3.1 of process wetted parts (not for gaskets) |
Notes.
- Not available NSF/ANSI 61 approval code YN
- Not available with sensor code A and B
- Not available with high static pressure code H
- Suitable for oxygen service
- Not available with sensor code A
- Not available with Process Flanges/Adapters material/connection code P, Z
- Not available with flange mounted version – Process flanges/adapters material/connection code R
- Not available with Output code 7
- Not available with Output code 9
- Availability: In Stock
- Estimated Lead Time: Usually Ships in 15 Working Days
- Shipping Weight: 6 Kg
