Part Number: 266HSHQSTS1E4L1B7I2C6H3

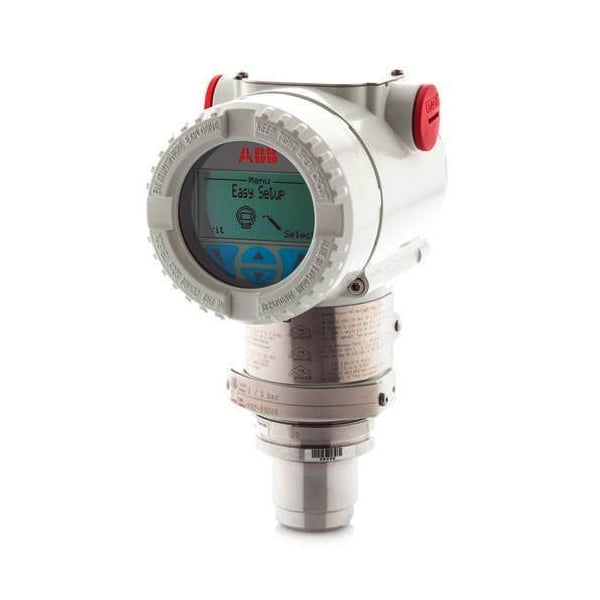

Model: 266HSH Gauge Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266HSH | Gauge Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limit | Q | 80 and 8000 kPa 0.8 and 80 bar 11.6 and 1160 psi |
| Diaphragm material / Fill fluid (wetted parts) | S | AISI 316 L ss Silicone oil (Note 1) NACE |
| Process connection (wetted parts) | T | AISI 316 L ss 1/2 – 14 NPT-f male (Note 2) NACE |
| Housing material and electrical connection | S | AISI 316 L ss (barrel version) 1/2 – 14 NPT |
| Output/Additional options | 8 | HART digital communication and 4 to 20 mA Options requested by “Additional ordering code” (Note 3) |
| Hazardous area certifications | E4 | FM Approvals (Canada) approval (Note 4) |
| Integral LCD | L1 | Digital LCD integral display |
| Mounting bracket (shape and material) | B7 | For pipe/wall mounting – AISI 316 L ss |
| Additional tag plate | I2 | Supplemental wired-on stainless steel plate |
| Certificates | C6 | Certificate of compliance with the order EN 10204–2.1 of instrument design |
| Material traceability | H3 | Inspection certificate EN 10204–3.1 of process wetted parts |
Notes.
- Not available with Sensor code V
- Not available with diaphragm code M, T, C, D, 4, 5
- Not available with Housing code G, Z, W
- Not available with Housing code J, K, W
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 7 Kg
