Part Number: 266HSHSKBT8E1L1B7I2C1C5C6H3

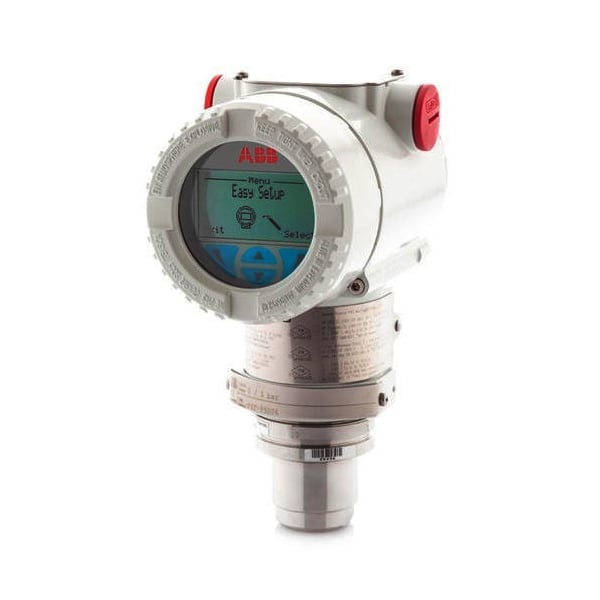

Model: 266HSH Gauge Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266HSH | Gauge Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limit | S | 160 and 16000 kPa 1.6 and 160 bar 23.2 and 2320 psi |
| Diaphragm material / Fill fluid (wetted parts) | K | Hastelloy C-276™ Silicone oil |
| Process connection (wetted parts) | B | AISI 316 L ss 1/2 – 14 NPT-f female (Note 1) NACE |
| Housing material and electrical connection | T | AISI 316 L ss ( barrel version) M20 x 1.5 (CM20) |
| Output/Additional options | 8 | HART and 4 to 20 mA Safety – certified to IEC 61508 Options requested by “Additional ordering code” (Note 2) |
| Hazardous area certifications | E1 | ATEX Intrinsic Safety II 1 G and II 1/2 G Ex ia IIC T6; II 1 D Ex iaD 20 T 95 °C and II 1/2D Ex iaD 21 T95 °C |
| Integral LCD | L1 | Digital LCD integral display |
| Mounting bracket (shape and material) | B7 | |
| Additional tag plate | I2 | Supplemental wired-on stainless steel plate |
| Certificates | C1 C5 C6 |
Inspection certificate EN 10204–3.1 of calibration (9-point) Inspection certificate EN 10204–3.1 of the pressure test Certificate of compliance with the order EN 10204–2.1 of instrument design |
| Material traceability | H3 | Inspection certificate EN 10204–3.1 of process wetted parts |
Notes.
- Not available with diaphragm code M, T, C, D, 4, 5
- Not available with Housing code G, Z, W
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 4 Kg
