Part Number: 266HSHSKEA1L1B6S2

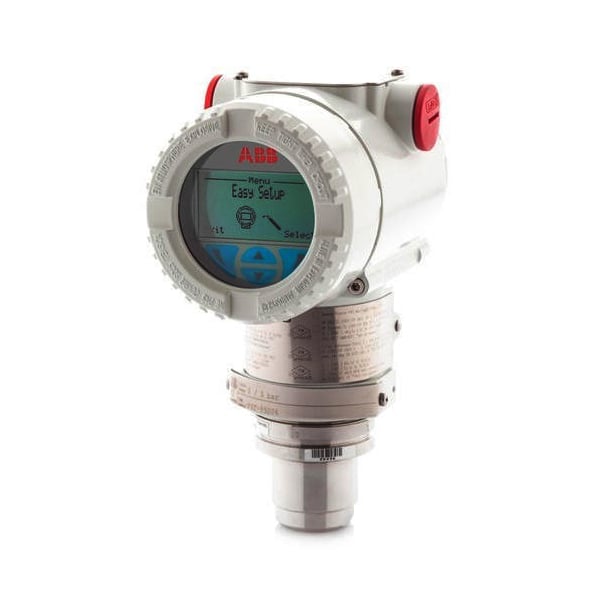

Model: 266HSH Gauge Pressure Transmitter
Manufacturer: ABB
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 266HSH | Gauge Pressure Transmitter – BASE ACCURACY 0.06 % |
| SENSOR – Span limit | S | 160 and 16000 kPa 1.6 and 160 bar 23.2 and 2320 psi |
| Diaphragm material / Fill fluid (wetted parts) | K | Hastelloy C-276™ Silicone oil NACE |
| Process connection (wetted parts) | E | Hastelloy C-276™ 1/2 – 14 NPT-f female (Note 1) NACE |
| Housing material and electrical connection | A | AISI 316 L ss (barrel version) 1/2 – 14 NPT |
| Output/Additional options | 1 | HART digital communication and 4 to 20 mA Options requested by “Additional ordering code” (Note 2) |
| Integral LCD | L1 | Digital LCD integral display |
| B6 | ||
| Surge | S2 | Surge/Transient Protector |
Notes.
- Not available with diaphragm code S, A, L, M, C, 4, 8, 9, I
- Not available with Housing code G, Z, W
- Estimated Lead Time: 24 – 28 Weeks
- Shipping Weight: 8 Kg
