Part Number: 266MSTCCA6S1L1B5M5I2

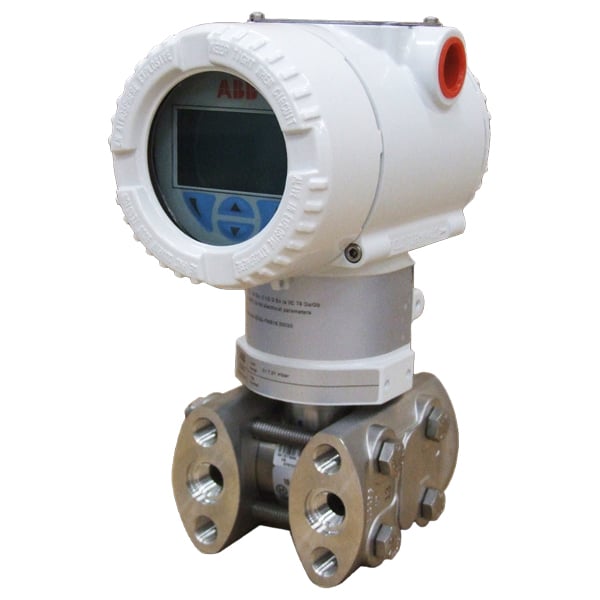

Model: 266MST Differential Pressure Transmitter
Manufacturer: ABB
Ordering Information
- Model: 266MST – Differential pressure transmitter, base accuracy 0.04 %
- Sensor Span Limits: C – 0.2 and 6 kPa (2 and 60 mbar, 0.8 and 24 inH2O)
- Maximum Working Pressure: C – 16 MPa / 160 bar / 2320 psi (Not available with Sensor Span Limits code A)
- Diaphragm Material / Fill Fluid: K – Hastelloy® C-276 / Silicone oil (NACE)
- Process Flanges and Adapters Material / Connection: A – AISI 316L SST (1.4404 / 1.4408) / 1/4 in –18 NPT female direct (horizontal connection) (NACE)
- Bolts Material / Gaskets Material: 6 – AISI 316 SST (NACE – not exposed to H2S) / Perbunan
- Housing Material / Electrical Connection: S – AISI 316L SST (Barrel type) / 1/2–14 NPT (I2 or I3 required)
- Output: 1 – HART digital communication and 4 to 20 mA
- Integral LCD: L1 – With integral LCD display
- Mounting Bracket Shape / Material: B5 – Flat type bracket / AISI 316 SST (1.4401) (Suitable for AISI housing)
- Operating Instruction Language: M5 – English
- Additional tag plate: I2 – Supplemental wired–on stainless steel plate
- Estimated Lead Time: 10 – 12 Weeks
- Shipping Weight: 15 Kg
- Country of Origin: Italy
