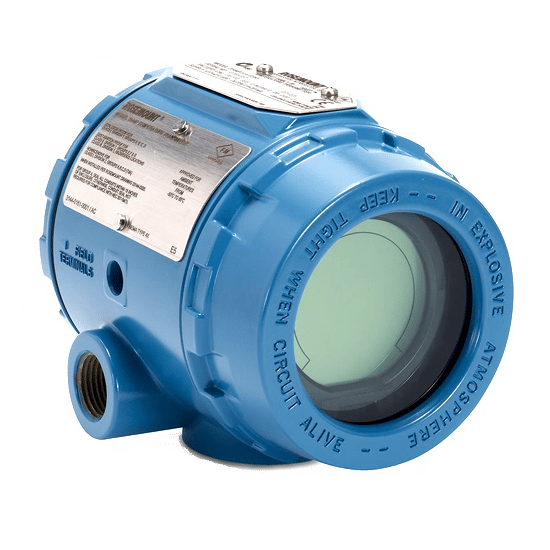

Part Number: 3144PD2A1NAB5M5Q4
Model: 3144P Temperature Transmitter
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Specifications
- Input: Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)
- Output Signal: 4-20 mA /HART® protocol, FOUNDATION™ Fieldbus protocol
- Housing: Dual-compartment field mount
- Display/Interface: Large LCD display with percent range graph and buttons/switches
- Diagnostics: Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking
- Calibration Options: Transmitter-sensor matching (Callendar-Van Dusen constants), custom trim
- Certifications/Approvals: SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications
Features
- Industry-leading accuracy and reliability for best performance in critical control and safety applications.
- Transmitter-sensor matching improves measurement accuracy up to 75%.
- 5-year long-term stability extends calibration intervals to reduce trips to the field.
- Rosemount X-well Technology measures temperature without a process penetration for reduced design, installation and maintenance costs.
Ordering Information
| Model | 3144P | Temperature transmitter |
| Housing style | D2 | Field mount housing, dual-compartment housing Material: Aluminum Conduit entry size: M20 1,5 (CM20) |
| Transmitter output | A | 4—20 mA with digital signal based on HART Protocol |
| Measurement configuration | 1 | Single-sensor input |
| Product Certificates | NA | No Approval |
| Mounting bracket | B5 | “L” mounting bracket for 2-in. pipe or panel mounting – All SST |
| Display | M5 | LCD display |
| Calibration certification | Q4 | Calibration certificate (3-point calibration) |
- Estimated Lead Time: 8 – 10 Weeks
- Shipping Weight: 3 Kg
