| Product Specifications | Details |
|---|---|
| Model | 5302 |
| Manufacturer | Rosemount |
| Condition | New, original factory packaging |
| Factory Warranty | 12 months |
| Key Features | Type: Guided Wave Radar Level or Interface Transmitter Measurement Functionality: Supports liquid and interface measurements, suitable for various applications Signal Output: 4-20 mA, supports HART communication; Default HART version is HART 5; HART 7 version available for enhanced communication flexibility |
| Physical Characteristics | Housing Material: Stainless steel for enhanced corrosion resistance and adaptability Connection Interfaces: ½ – 14 NPT, includes 1 plug; M20 x 1.5 adapter (for some models) |
| Operating Conditions | Operating Temperature: Design temperature range: -76 to 752°F (-60 to 400°C) Operating Pressure: Range: -15 to 5000 psig (-1 to 345 bar) or -15 to 580 psig (-1 to 40 bar) |
| Materials | Probe Material: 316/316L/EN 1.4404 Sealing O-ring Material: None (some models use fluoropolymer (FKM)) |
| Probe Characteristics | Probe Type: Rigid Single Lead (8 mm) Probe Length: Minimum: 1 ft 4 in (0.4 m); Maximum: 9 ft 10 in (3 m) |
| Connection Methods | Process Connections: Flange/1 in. (1), 1½ in., 2 in. Thread/Tri Clamp Process Connection Size/Type: 4 in. Class 300, RF (Raised Face Type); 3 in. Class 150, RF |
| Display and Certifications | Display: Integral digital display Safety Certifications: Some models have ATEX flameproof certification; Overfill prevention certified according to WHG/TUV; Safety certified to IEC 61508 (including FMEDA data certificate) |
| Special Quality Assurance | Calibration Data Certificate Material Traceability Certification: Consistent with ISO10474-3.1:2013 / EN10204-3.1:2004 |
| Additional Information | Centering Disc: 3-inch centering disc, outer diameter 2.7 inches (68 mm) Operating Requirements: Requires Operating Temperature and Pressure code H, P, or C; Only available with Operating Temperature and Pressure code S Estimated Lead Time: 6 – 10 weeks Shipping Weight: 25 kg |

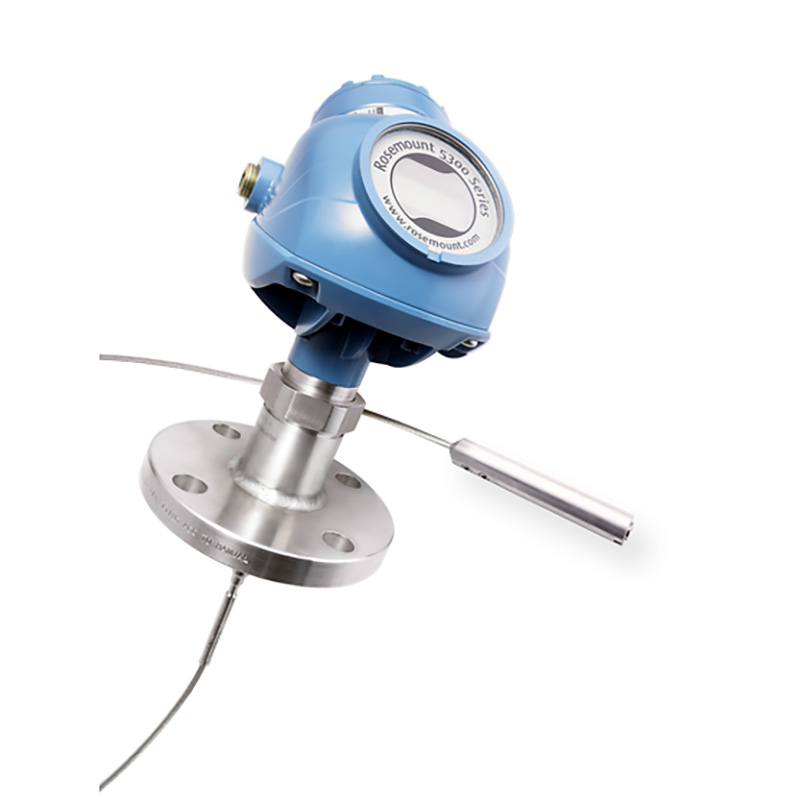

Rosemount 5302 Guided Wave Radar Level Transmitter | Rosemount Guided Wave Radar
$1,900.00
As a leading supplier of high-quality level measurement solutions, the Rosemount 5302 Guided Wave Radar Level Transmitter is the ideal choice for liquid and interface measurement in various complex industrial applications. It features a wide operating temperature and pressure range, with a corrosion-resistant stainless steel housing that ensures long-term reliability. Supporting 4-20 mA output and HART communication (HART 5 with optional HART 7), it easily integrates into existing systems. We are committed to providing excellent after-sales service, ample inventory, and fast delivery to support your business’s continuous development and enhance production efficiency. Choose the Rosemount 5302 for an efficient and reliable level transmitter.
Brand:Rosemount
Purchase details
- Free Online Product Selection Service
- Fast Quoting & Competitive pricing
- Min. order: 1 piece & 2-Year Warranty
- [email protected]
