Part Number: 8705AHA030C1M0N5B3
Nomenclature Magnetic Flow Transmitter: 8732EMT2A1N5M4

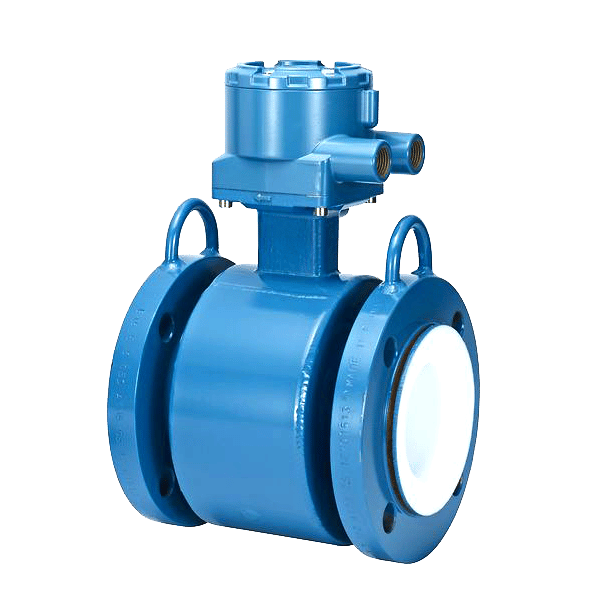

Model: 8705 Flanged Magnetic Flow Meter Sensors
Manufacturer: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 8705 | Magnetic Flanged Flowmeter Sensor |
| Lining material | A(1) | PFA |
| Electrode material | H | Nickel Alloy 276 (UNS N10276) |
| Electrode type | A | 2 Measurement Electrodes – Standard |
| 030 | Line sizes: 3-in. (80 mm) | |
| Flange type and material(2) | C | Slip-On, Raised-Face, Carbon Steel |
| Flange rating(2) | 1 | ASME B16.5, Class 150 (1 /2 thru 24-in.); AWWA Class D (30 and 36-in.) |
| Coil housing configuration | M0(3) | Sealed, Welded Housing with Field Replaceable Terminal Block/Socket Module |
| Factory Mutual (FM) | N5 | FM Non-Incendive with Intrinsically Safe Electrodes, Class I Div 2; DIP |
| Miscellaneous options | B3 | Integral Mount with 8732EM Transmitter |
| Model | 8732EM | Magnetic Flow Transmitter – Field Mount |
| Transmitter Mount | T | Integral Mount |
| Transmitter Power Supply | 2 | DC (12 – 42 Vdc) |
| Outputs | A | 4 – 20 mA with digital HART Protocol & Scalable Pulse Output |
| Conduit entries | 1 | ½-14 NPT female |
| N5 | ||
| Display Option | M4 | LOI |
- Neoprene and Linatex available in line sizes:
1-in. to 24-in. (25 mm to 600 mm) ASME Class 150, Class 300, Class 600 (fully rated) and EN 1092-1
30-in. and 36-in. (750 mm and 900 mm) AWWA Class D, ASME Class 150, and MSS SP44 Class 150
1-in. to 12-in. (25 mm to 300 mm) ASME Class 900
1 1/2-in. to 12-in. (25 mm to 300 mm) ASME Class 1500
1 1/2-in. to 8-in. (25 mm to 200 mm) ASME Class 2500. - Refer to Table 9 and Table 10 for standard flange offering.
- Consult Technical Support for use with Ordinary Locations.
- Estimated Lead Time: 8 – 10 Weeks
- Shipping Weight: 20 Kg
