Part Number: 8800DF005SA1N2D1I1R10Q4
Ordering Information

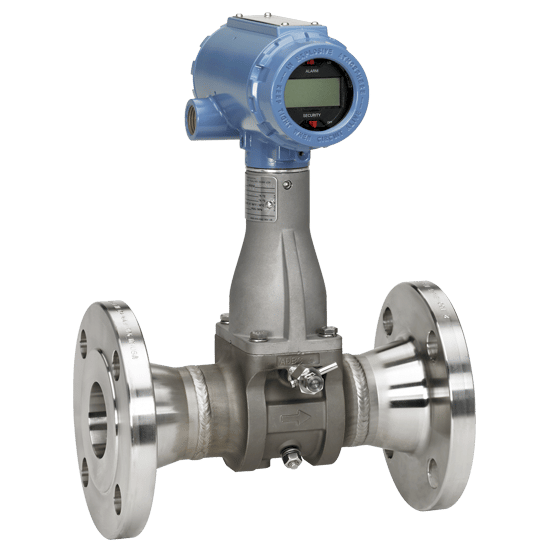

- Model: 8800D – Vortex Flowmeter
- Meter style: F – Flanged style
- Line size: 005 – 1/2-in. (15 mm) (Not available for Rosemount 8800DR)
- Wetted materials: S – 316 wrought stainless and CF-3M cast stainless. Note: Material of construction is 316/316L.
- Flange or alignment ring size: A1 – ASME B16.5 (ANSI) RF Class 150
- Sensor process temperature range: N – Standard: -40 to 450°F (-40 to 232°C)
- Conduit entry: 2 – M20 x 1.5 ? Aluminum Housing
- Outputs: D – 4-20 mA digital electronics (HART protocol)
- Calibration: I – Flow calibration
- Hazardous locations certifications: I1 – ATEX Intrinsic Safety ia; Intrinsic Safety ic
- Other options: R10 – Remote electronics with 10 ft (3,0 m) cable
- Certification options: Q4 – Certificate of Calibration – Consistent with ISO 10474 3.1B or EN 10204 3.1
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 9 Kg
