Part Number: 8800DF040SA1E1D1K1M5Q4Q8

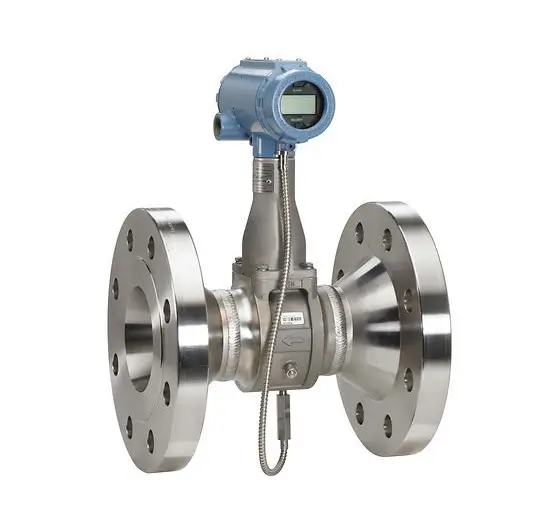

Model: 8800D Vortex Flowmeter
Brand: Rosemount
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | 8800D | Vortex Flow Meter |
| Meter style | F | Standard body style for use with flanged, welded, and threaded process connections |
| Line size | 040 | 4 inch (100 mm) |
| Wetted materials | S | 316 wrought stainless and CF-3M cast stainless; Material of construction is 316/316L. |
| Process connection style and pressure rating | A1 | ASME B16.5 RF Class 150 |
| Sensor process temperature range | E(1) | Extended: –330 to +800 °F (–200 to +427 °C) |
| Housing material and conduit entries | 1 | Aluminum housing, two ½–14 NPT conduit entries |
| Outputs | D | 4–20 mA digital electronics (HART protocol) |
| Calibration | 1 | Flow calibration |
| Hazardous area approvals | K1 | ATEX Flameproof; Intrinsic Safety; Type n; Dust |
| Display type | M5 | LCD indicator |
| Quality certificate | Q4 Q8 |
Calibration Certificate per ISO 10474 3.1/EN 10204 3.1 Material Traceability per ISO 10474 3.1/EN 10204 3.1 |
- See Table 10 and Table 14 for the specific sensor process temperature range. Meters that include the PD option code are compliant with the EU
Pressure Equipment Directive, PED, 2014/68/EU and the UK Pressure Equipment (Safety) Regulation, PER, Statutory Instrument, SI No. 1105.
- Estimated Lead Time: 12 Weeks
- Shipping Weight: 10 Kg
