- 0.03 to 33 ft/s (0.01 to 10 m/s) measuring range for liquids
- Over 1000:1 operable flow range
- 32 to 140°F (0 to 60°C) medium temperature range
- PN 16, Class 150, 10K maximum process pressure
- Accuracy
- Current: ±5 μA
- Pulse: ±0.5% o.r. ±0.08 in/s (±0.5% o.r. ±2 mm/s)
- Max ±0.2% o.r. ±0.08 in/s (±0.2% o.r. ±2 mm/s) repeatability
- ≥50 μS/cm minimum conductivity
- IP67, NEMA 4X
- IEC, EN, NAMUR

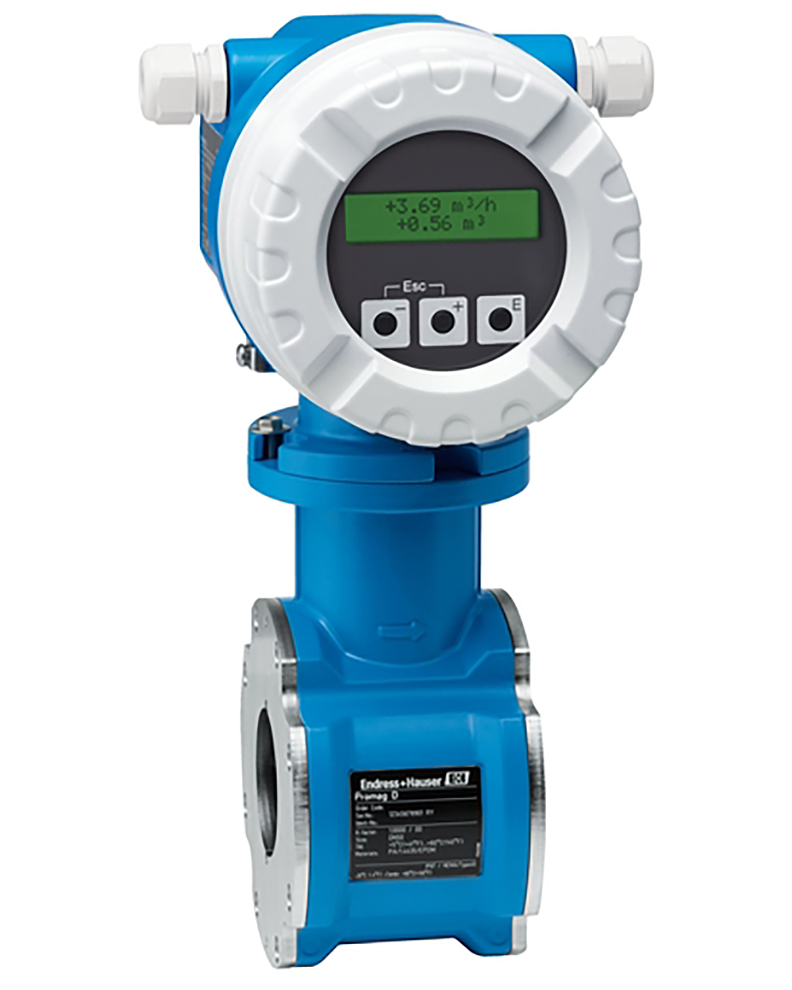

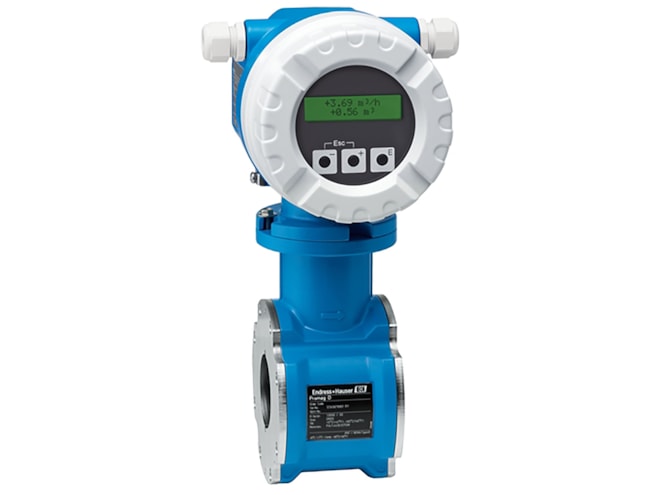

E+H Proline Promag 10D Electromagnetic Flow Meter
$3,230.00
The E+H Proline Promag 10D electromagnetic flow meter is designed for applications where space is at a minimum. The 10D features innovative housing construction for easy, fast centering of the sensor, and the meter\’s design prevents pressure loss due to cross-section constriction. The 2-line, push-button display provides easily readable process information for safe operation. Combined with the Promag 10 transmitter, the Promag 10D is the ideal solution for measurement of liquids for various applications and is available in a compact or remote version.
Brand:Endress+Hauser
Purchase details
- Free Online Product Selection Service
- Fast Quoting & Competitive pricing
- Min. order: 1 piece & 2-Year Warranty
- [email protected]
Description
