- 0.03 to 33 ft/s (0.01 to 10 m/s) measuring range for liquids
- Over 1000:1 operable flow range
- Medium temperature range:
- Hard rubber: 32 to 176°F (0 to 80°C)
- Polyurethane: –4 to 122°F (–20 to 50°C)
- PN 40, Class 300, 20K maximum process pressure
- Accuracy
- Current: ±5 μA
- Pulse: ±0.5% o.r. ±0.08 in/s (±0.5% o.r. ±2 mm/s)
- Max ±0.2% o.r. ±0.08 in/s (±0.2% o.r. ±2 mm/s) repeatability
- ≥50 μS/cm minimum conductivity
- IP67, NEMA 4X standard
- IP68, NEMA 6P optional for sensor for remote version
- IEC, EN, NAMUR

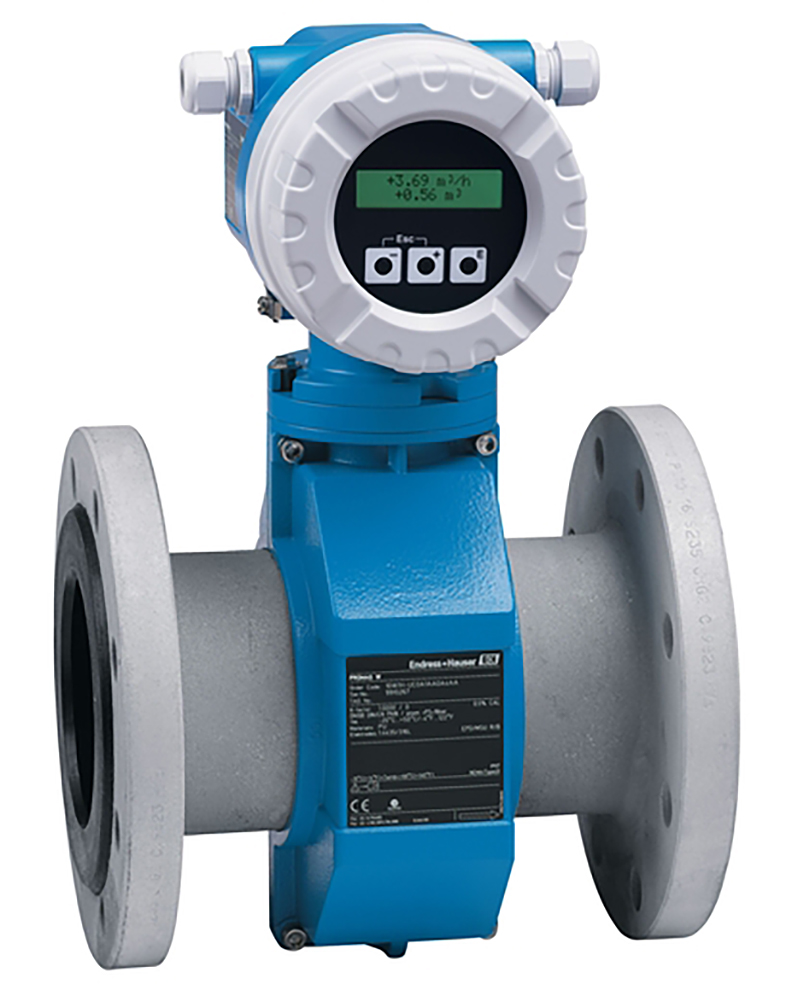

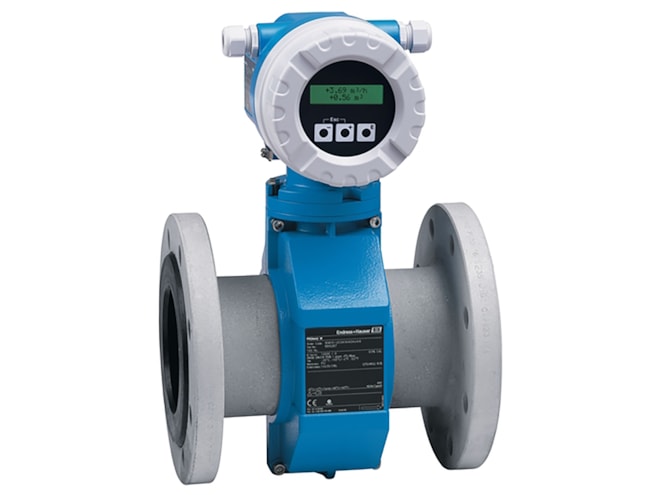

E+H Proline Promag 10W Electromagnetic Flow Meter
$3,230.00
The E+H Proline Promag 10W electromagnetic flow meter combines the Promag W sensor and the Promag 10 transmitter. The Promag sensors feature no pressure loss, no sensitivity to vibrations, and simple installation and commissioning. The Proline transmitters offer a uniform operating concept and a high degree of reliability and measuring stability.
The Promag 10W offers secure, reliable long-term operation with a robust and completely welded sensor and no moving parts. There is also no pressure loss from cross-section constriction. The Promag 10W\’s sensor offers flexible engineering with fixed or lap-joint process connections. The 10W also provides accurate measured values even with 0 x DN inlet run. The 10W features a 2-line, push button display for safe operation, and is available as a compact or remote version.
Brand:Endress+Hauser
Purchase details
- Free Online Product Selection Service
- Fast Quoting & Competitive pricing
- Min. order: 1 piece & 2-Year Warranty
- [email protected]
Description
