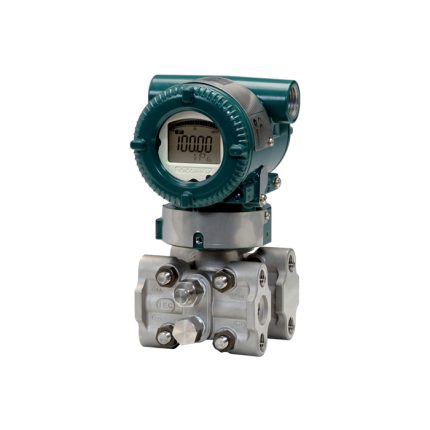

The EJA110E series of transmitters is Yokogawa’s most recent evolution of the DPharp family of pressure transmitters. Released in 2012, it combines the ruggedness and success of the work-horse EJA-A series with the performance of the thoroughbred EJX-A series to deliver the type of product you have come to expect from Yokogawa.
The EJA110E is our standard traditional-mount differential pressure transmitter in this series.
EJA110E features include:
- 0.055% Accuracy (0.04% Accuracy optional)
- 0.1% Stability per 10 years
- 90 ms Response Time
- Exida and TUV SIL 2 / SIL3 Certified
- MWP 2,300 psi (MWP 3,600 psi option)
- Local Parameter Setting (LPS)
EJA110E Specification Overview
Refer to the General Specification sheet located under the ‘Downloads’ tab for detailed specifications.
| Measurement Types | |
|---|---|
| Primary Variable | Differential Pressure (DP) |
| Secondary Variable | Static Pressure (SP) |
| Reference Accuracy | |
| Primary Variable | ±0.055% of Span |
| Secondary Variable | ±0.5% of Span available |
| Response Time | |
| Primary Variable | 90 msec |
| Secondary Variable | 360 msec |
| Long Term Stability | |
| Primary Variable | ±0.1% of URL per 10 years |
| Over-pressure Effect | |
| Primary Variable | ±0.03% of URL |
| Rangeability | |
| Primary Variable | 100:1 |
