The EJX-A series is Yokogawa’s premium performance line of DPharp transmitters. Released in 2004, it offers the performance and stability needed in demanding applications. The EJX-A series performance makes it the thoroughbred of the DPharp family of pressure transmitters.

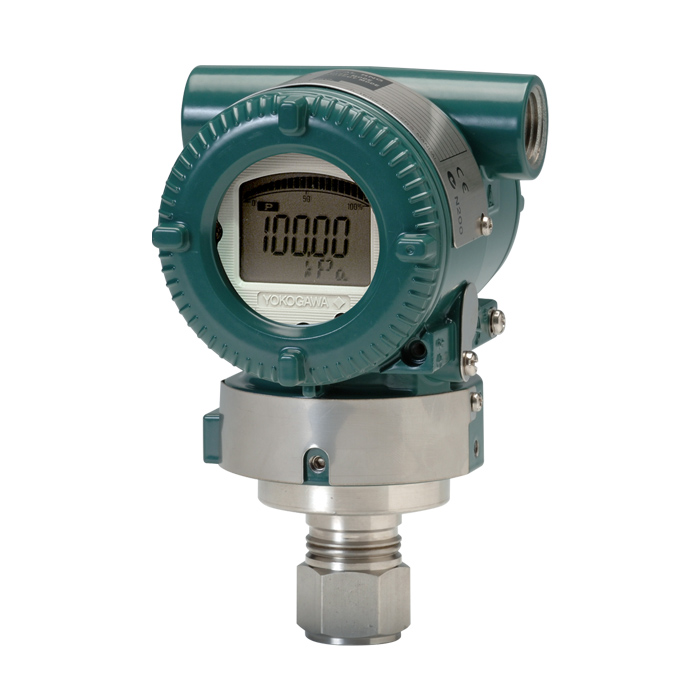

The EJX610A is the high performance In-Line Absolute Pressure Transmitter in the series.
EJX610A faetures include:
- ± 0.04% Accuracy
- ± 0.2% per 15 years Stability
- 90 ms Response Time
- 15,200 psia Maximum Over Pressure
- Exida and TUV SIL 2/3 Certified
- Local Parameter Setting (LPS)
EJX610A Overview
Refer to the General Specification sheet located under the ‘Downloads’ tab for detailed specifications.
| Measurement Types | |
|---|---|
| Primary Variable | Absolute Pressure |
| Reference Accuracy | |
| Primary Variable | ±0.04% of Span |
| Stability (All Normal Operating Conditions) | |
| Primary Variable | ±0.2% of URL per 15 years |
| Response Time | |
| Primary Variable | 90ms |
| Rangeability | |
| Primary Variable | A Capsule: 100:1 B, C, or D Capsule: 200:1 |
| Burst Pressure (Absolute) | |
| A, B, or C Capsule | 7,250 psi (50 MPa) |
| D Capsule | 26,390 psi (182 MPa) |
| Specification Conformance | |
| EJX-A Series | ±3σ |
