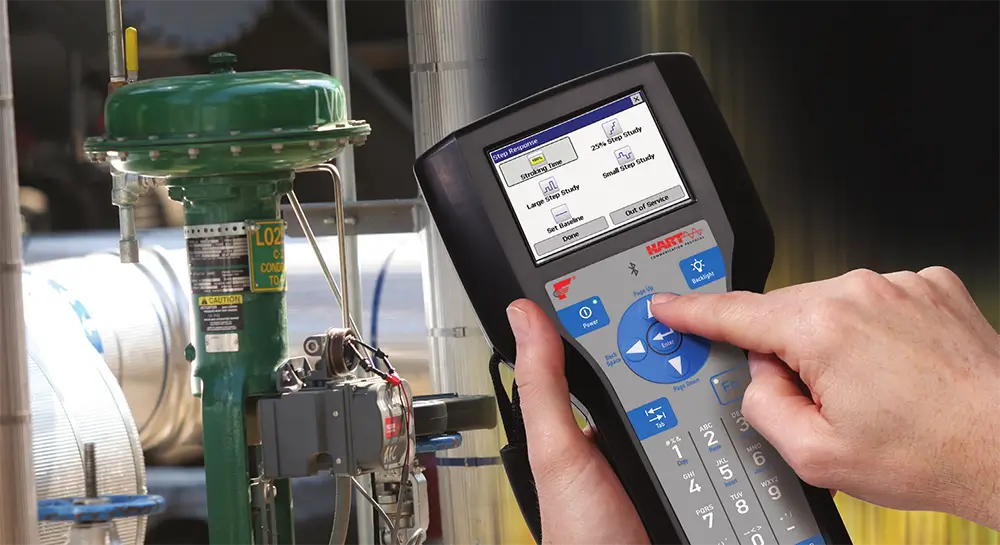

The 475 Field Communicator builds on the industry-leading technology of the 375 Field Communicator while adding innovative new capabilities including color display, Bluetooth communication, and advanced field diagnostics with applications like ValveLink Mobile.
What you get is the most powerful handheld available –universal, user upgradeable, intrinsically safe, rugged and reliable. Only the 475 Field Communicator can deliver all this in a single handheld communicator.
Specifications
| Processor And Memory | |
| Microprocessor | 80 MHz Hitachi® SH3 |
| Memory Internal Flash | 32 MB |
| System Card | 1 GB secure digital card |
| RAM | 32 MB |
| Physical | |
| Weight | Approximately 1.65 lb. (0.75kg) with battery |
| Display | 1/4 VGA (240 by 320 pixels) color, 3.5 in. (8.9 cm) transflective display with touchscreen Anti-glare coated |
| Keypad | 25 keys including 4 action keys, 12 alphanumeric keys, tab key, function key, backlight key, power key, and 4 cursor-control (arrow) keys; membrane design with tactile feedback |
| Power Supply / Charger | |
| Battery | Rechargeable Lithium-Ion power module |
| Battery Operating Time | 20 hours - continuous use 40 hours - typical use 80 hours - standby mode |
| Battery Charger Options | Input voltage 100-240 VAC, 50-60 Hz Cables included with U.S., Europe, and U.K. plugs |
| Connection | |
| Battery Charger | Mini DIN 6-pin jack |
| HART and Fieldbus | Three 4mm banana jacks (one common to HART and Foundation Fieldbus) |
| IrDA Port | IrDA (Infrared Data Access) port supporting up to 115 Kbps ±15 degrees recommended maximum angle from center line Approximately 18 in. (45.7 cm) recommended maximum distance |
| Bluetooth | Up to 32.8 ft. (10 m) communication distance Uses standard Windows drivers FCC, IC, and CE approvals Certified for use in over 60 countries |
| Environmental | |
| Usage | -10°C (14°F) to +50°C (122°F) |
| Battery | 0% to 95% RH (non-condensing) for 0°C (32°F) to +50°C (122°F) |
| Charge | 10°C (50°F) to +40°C (104°F) |
| Storage With Batteries | -20°C (-4°F) to +55°C (131°F) |
| Storage Without Batteries | -20°C (-4°F) to +60°C (140°F) |
| Enclosure Rating | IP51 (from front) |
| Shock | Tested to survive a 1-meter drop test onto concrete |
| Easy Upgrade Requirements | |
| Usage | PC with Internet access |
| CD Rom drive | |
| IrDA port (or adapter) or Bluetooth (or adapter) | |
| SD Card Reader (required for some upgrades) | |
| Windows XP (SP2 or SP3), Windows Vista Business (SP1), or Windows 7 | |
475 Field Communicator Ordering Information
| Code | Product Description |
|---|---|
| 475 | Field Communicator |
| Code | Communication Protocol |
| H | HART |
| F | HART and Foundation Fieldbus |
| Code | Battery Type |
| P | Rechargeable Lithium-Ion Power Module |
| Code | Power Supply/Charger |
| 1 | Power Supply and Charger NiMH/Li-Ion (US/UK/EU connection types included) |
| 9 | Not included |
| Code | Language |
| E | English |
| C | Chinese |
| D | German |
| J | Japanese |
| R | Russian |
| F | French |
| P | Portuguese |
| Code | Product Certifications |
| KL | ATEX, FM, CSA and IECEx Intrinsically Safe (includes FISCO as applicable) |
| NA | No Approval |
| Code | Easy Upgrade |
| U | Easy Upgrade (3 year) Option |
| 9 | Not Included |
| Code | Standard Options |
| GM | Graphics (included at No Charge) Device Configuration Management (included at No Charge) |
| Code | Bluetooth |
| T | Bluetooth Communication |
| 9 | No Bluetooth Communication |
| Code | Options |
| A | Spare Rechargeable Lithium-Ion Power Module |
| S | Protective Rubber Boot with Stand |

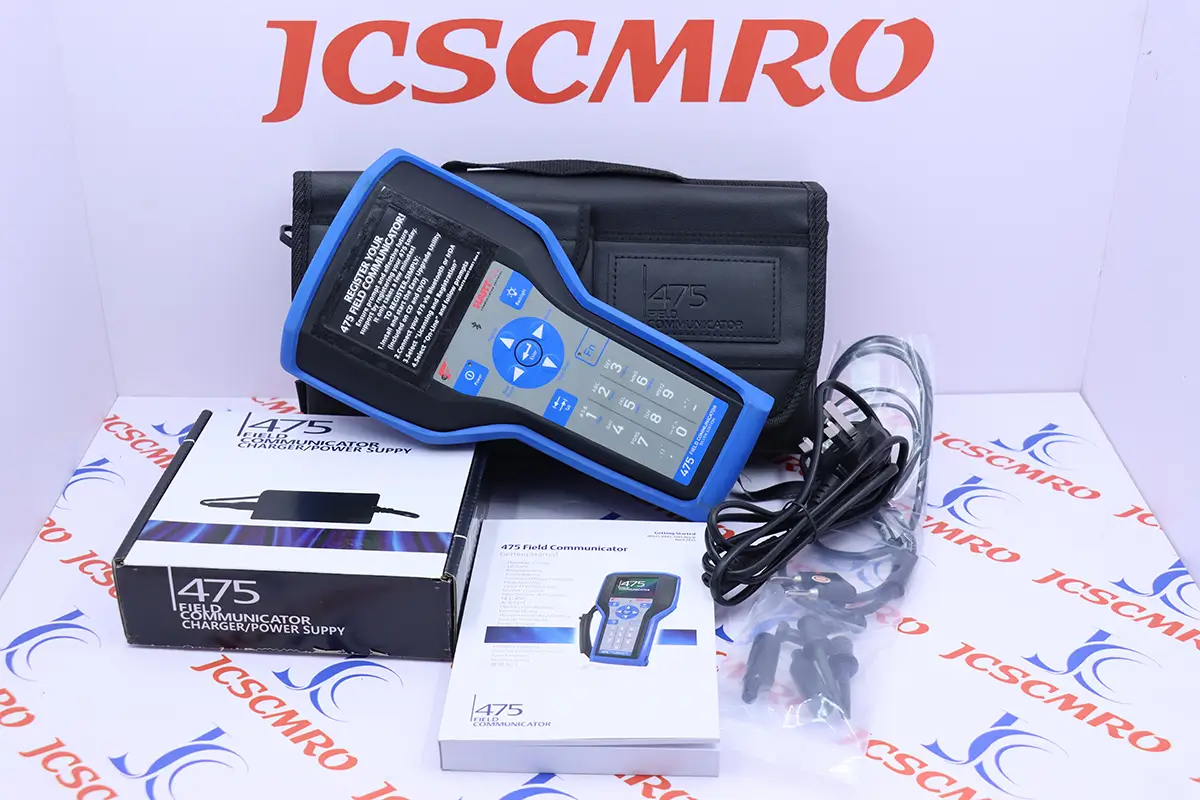

JCSCMRO is a highly acclaimed company offering a wide variety of Industrial field instrument products, We are a trusted Exporter and Supplier of Hart 475 Field Communicator, Our business unit is backed by an expert team of people for carrying out various processes. Further, our engineers and technicians are the most experienced professionals in the trade. If you need to order Hart 475 Field Communicator, Please feel free to contact us at [email protected]
