Micro Motion 5700 Field-Mount Transmitter | Emerson 5700 Transmitter

The Micro Motion 5700 Field-Mount Transmitter stands out with its multi-variable measurement capabilities, allowing simultaneous monitoring of mass flow, density, and temperature, making it ideal for complex process control applications.

Specifications of Emerson 5700 Transmitter

Local display	Graphical backlit display
Four-button optical controls	Flowmeter-status LED
Supports English, German, French, Spanish, Portuguese, Russian, Chinese, and Japanese languages.
Power	Self-switching AC/DC input, automatically recognizes supply voltage
	85 to 240 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
	18 to 100 VDC, 6 watts typical, 11 watts maximum
	Complies with Low Voltage Directive 2006/95/EC per IEC 61010-1 Ed. 3.0 2010-06; Overvoltage Category II, Pollution Degree 2

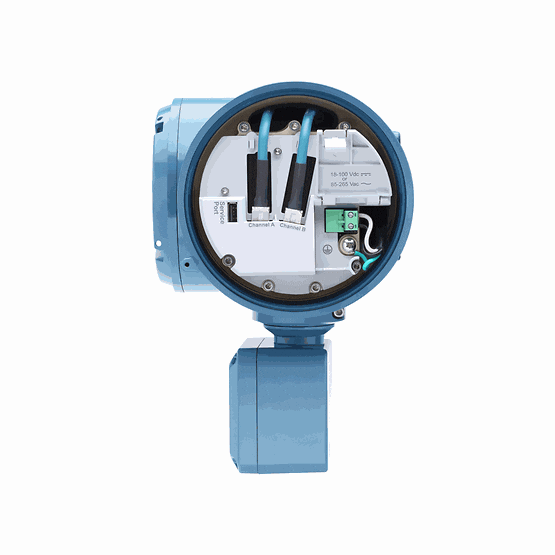

Universal Service Port	Universal Service Port design allows for connection and data transfer using standard, readily available equipment.
Configurable I/O version	Up to 5 licensable channels with the following possible configurations:
	1 to 3 4-20 mA outputs
	1 to 3 Pulse outputs
	1 to 3 Discrete outputs
	1 to 2 Discrete inputs
	1 mA input
	1 Modbus/RS-485
	Channel A: mA/HART
	Channel B: mA/FO/DO
	Channel C: mA/FO/DO/DI
	Channel D: mA-input/FO/DO/DI
	Channel E: Modbus RS-485
Communication Protocol	WirelessHART
	WirelessHART available with the 775 Smart Wireless THUM adapter.
FOUNDATION Fieldbus version	FOUNDATION Fieldbus channel
	mA output
	Pulse output
PROFIBUS-PA version	PROFIBUS-PA channel
	mA IS output
	Pulse IS output
Wi-Fi Display Option:	Wi-Fi display option enables point-to-point wireless communication in order to configure and characterize the meter, download historical files, and run Smart Meter Verification for troubleshooting purposes. Available for the 5700 Config I/O version only.
Intrinsically Safe version	Up to 4 licensable IS channels with the following configurations:
	Channel A: mA/HART
	Channel B: mA
	Channel C: mA/FO
	Channel D: FO
	Channel E: Not Used
SIL Certified Device	Available – Uses an internal readback loop to verify the milliamp output
Ethernet version	Dual Ethernet ports supporting EtherNet/IP, Modbus TCP, and PROFINET all in one device
	Additional channel included configurable to mA output, pulse output, discrete output, or discrete input
	Pre-installed M12 quick connections available as an option

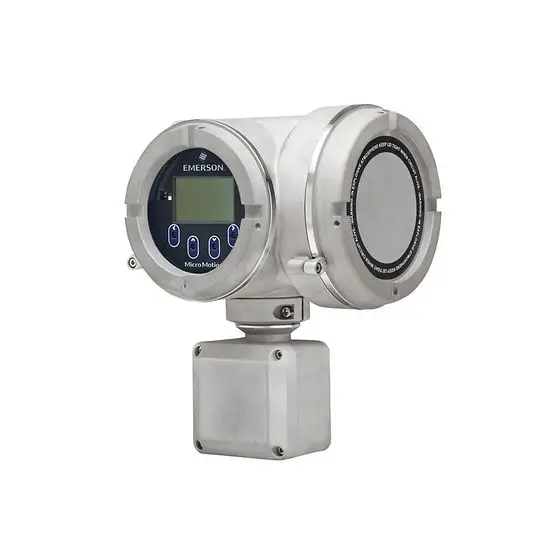

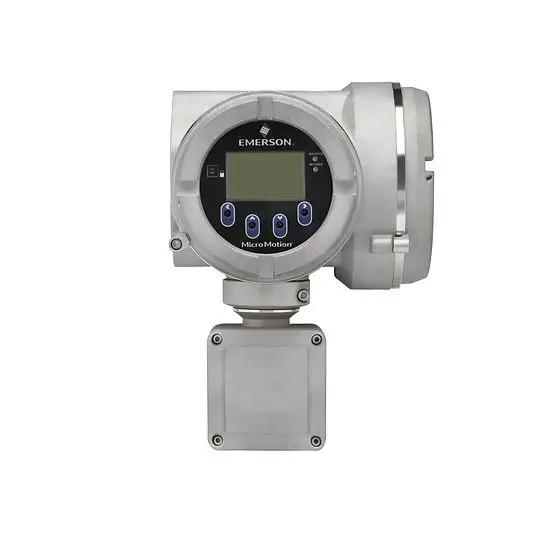

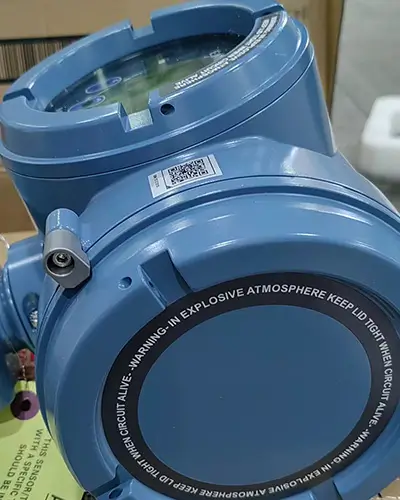

Mounting options	Field-mount aluminum and stainless steel housing options
	Integrally mounted to a Micro Motion ELITE (CMFS), F-series, H-series, R-series, or T-series Coriolis sensor (aluminum only)
	Remotely mounted to any 4-wire or 9-wire Micro Motion ELITE®, F-series, H-series, R-series, or T-series Coriolis sensor (aluminum and stainless steel versions)
Application types	Smart Meter Verification Professional
	Discrete batch control
	Petroleum measurement and API correction option
	Concentration measurement
	Advanced Phase Measurement for two phase flow remediation
	Piecewise Linearization for Gas Applications
Certificates/Approvals	Hazardous approvals
	Class I, Div. 1
	Class I, Div. 2
	Zone 1
	Zone 2
	SIL/SIS Certification
	5700 Config I/O and Intrinsically Safe versions are certified for SIL2 single use and SIL3 multiple use safety applications per IEC 61508. Please refer to the Safety Manual in the document manuals and guides section.
