Fisher 2052 Specifications
| Specifications | Details |
|---|---|
| Actuation | Spring-return, Quarter-turn, Rotary |
| Certifications | PED, CUTR, ATEX, SIL capable |
| Control Type | On/Off, Throttling |
| Power Source | Pneumatic |
| Valve Type | Ball Valve, Butterfly Valve, Eccentric Plug Valve, Triple Offset Valve |
| Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
Features
- The compact design reduces valve/actuator envelope dimensions leading to greater mounting versatility for both skids and process plants.
- Allows linkage-less feedback, via a contact-less magnetic array.
- The clamping of the lever onto a splined valve shaft, coupled with the single pivot linkage, reduces lost motion between the actuator and the valve.
- The nested spring design requires no bench set.
- The actuator can be mounted directly onto non-spline shafts, which allows mounting on a wider range of valves.
- Ability to adjust or change the travel range by 30 degrees in either direction without removing the actuator or the addition of extra parts.
- All parts in the fail-safe mechanism (made of steel, cast iron, and ductile iron) ensure the actuator will maintain safety integrity in the event of a fire.
- The actuator/valve assembly action can be converted from push-down-to-open to push-down-to-close, or vice-versa, without additional parts.

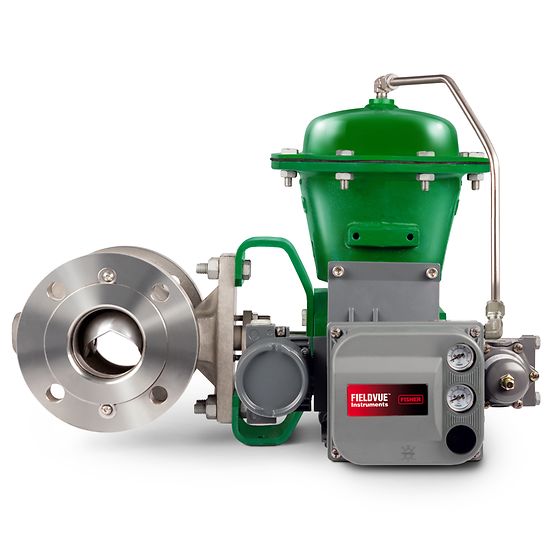

The Fisher 2052 actuator offers precise positioning and reliable performance, suitable for throttling and on/off control. Its compact design and advanced pneumatic technology ensure stable operation in various environments. As an authorized distributor, JCSCMRO provides high-quality 2052 actuators, delivering efficient and reliable industrial control solutions to customers worldwide.
