Product Description

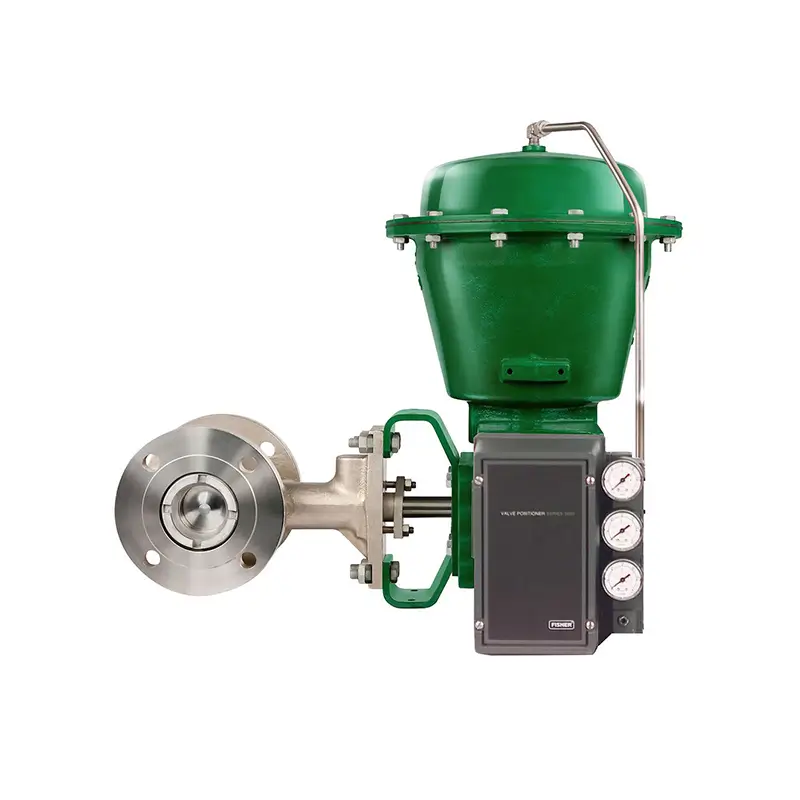

Fisher 3610J pneumatic positioners are used in combination with single-acting rotary actuators to accurately position control valves used in throttling applications. These rugged positioners provide a valve position proportional to a pneumatic or a DC current input signal and are mounted integrally to the actuator housing.
Specifications
| Area Classification | ATEX Group II Category 2 Gas and Dust, CUTR for Groups II/III Category 2 Equipment |
| Certifications | ATEX, CUTR, PED |
| Communication Protocol | 3-15 or 6-30 psi, 0.2 -1.0 or 0.4 -2.0 bar Pneumatic Signal |
| Diagnostics | No |
| Input Signal | Pneumatic |
| Max Outlet Pressure | 50 psi |
| Mounting Type | Actuator Mounted |
| Operating Temperature | Standard Temperature |
| Position Control | Modulating |
| Safety Certification | NIL |
| Supply Media | Air, Natural Gas |
| Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
Features
- The positioner provides accurate, fast-response and can withstand the vibrations of most plant environments.
- With the cover removed, zero span and cross-over adjustments are easily accessible and can be made with a screw driver.
- Easily adjustable minor loop gain fine tunes the positioner to optimize dynamic response for each specific actuator size and application.
- Changes in supply pressure have minimal effect on positioner operation.
- Case, components, and gasket materials withstand harsh environments. Positioner bleed air purges internal parts and actuator housing for additional protection.
- Simple adjustments permit switching between direct and reverse action; no additional parts are required.
