Fisher V200 Specifications
| Specification | Details |
|---|---|
| Certifications | SIL capable, ATEX, CUTR, PED, CRN, Fugitive Emission, NACE |
| Critical Service | Noise Abatement, Cavitation, Dirty Service, Erosive, Low Flow, General Service |
| Flow Characteristics | Equal Percentage |
| Material | Carbon Steel, Stainless, Duplex, Alloy |
| Operating Temperature | Standard Temperature |
| Pressure Class | ASME |
| Process Connection Type | Flanged |
| Shutoff Class | Class III (FCI 70-2), Class IV (FCI 70-2), Class VI (FCI 70-2) |
| Valve Size | NPS 1, NPS 1-1/2, NPS 2, NPS 3, NPS 4, NPS 6, NPS 8, NPS 10 |
| Valve Size Standard | NPS |
| Other Configurations | Contact your local Emerson business partner or sales office to learn about additional specifications or options for this product. |
Features
- Available with flangeless or flanged body style for flexible installation.
- The solid HD ball seal construction provides long service life in demanding applications.
- Precise contouring of the Vee-Ball provides a modified equal percentage flow characteristic.
- Materials are available for applications involving sour liquids and gases. These constructions comply with NACE MR0175-2002, MR0175-2003, MR0103, and MR0175/ISO 15156.
- Ball seal inspection and replacement is done at the valve body inlet, without removing the actuator or disassembling the valve.
- The one-piece valve body improves structural integrity of the pressure boundary by eliminating leak paths that could be caused by the gaskets in two-piece, bolted valve designs.
- The optional ENVIRO-SEAL™ packing systems are designed with very smooth shaft surfaces and live loading to provide sealing capability.

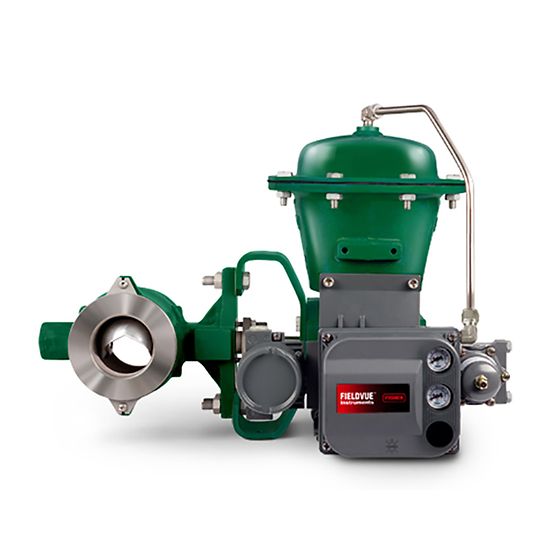

The Fisher V200 control valve is known for its precise flow control and exceptional durability, making it ideal for high-pressure, corrosive, and solid-containing applications. As an authorized supplier, JCSCMRO provides genuine products, fast delivery, and expert selection support, ensuring efficient and reliable industrial solutions for our customers.
