Micro Motion T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 1600 Transmitter $2,328.00
Back to products
micro motion tseries
Micro Motion T050T Coriolis Meter | Emerson Coriolis Meter supplier $2,328.00

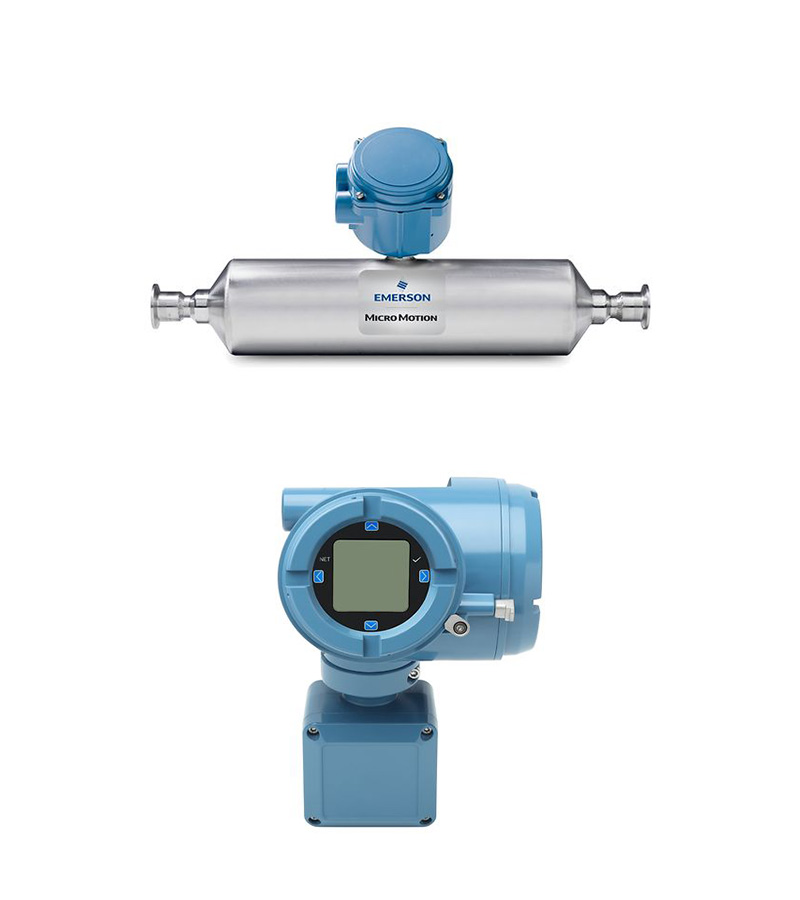

Micro Motio T-Series Straight Tube Coriolis Meter Consisting of T100T Sensor and 4700 Transmitter

$2,328.00

As a supplier, we offer the Micro Motion T-Series Straight Tube Coriolis Meter, combining the T100T sensor and 4700 transmitter, which delivers high accuracy and reliability for a variety of fluids. The titanium construction ensures compatibility and simplifies installation and maintenance. The 4700 transmitter provides flexible input and output options, allowing for real-time monitoring of flow and density to help optimize processes. We guarantee excellent service and ample inventory to support your business success.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Mass Flow Accuracy (Liquid) ±0.15% of rate
Mass Flow Repeatability (Liquid) ±0.05% of rate
Volume Flow Accuracy (Liquid) ±0.25% of rate
Volume Flow Repeatability (Liquid) ±0.05% of rate
Mass Flow Accuracy (Gas) ±0.50% of rate
Mass Flow Repeatability (Gas) ±0.05% of rate
Density Accuracy (Liquid) ±0.002 g/cm3 (±2.0 kg/m3)
Density Repeatability (Liquid) ±0.0005 g/cm3 (±0.5 kg/m3)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Certifications UL, CSA, ATEX, ASME, 3-A, USDA, EHEDG
Micro Motion 4700 Transmitter Configurable Inputs and Outputs
Operating Temperature -61 °F (-52.0 °C) to 149 °F (65.0 °C)
Storage Temperature -61 °F (-52.0 °C) to 185 °F (85.0 °C)
Vibration Limits Meets IEC 60068-2-6, endurance sweep, 5 to 2000 Hz up to 1.0 g
Housing NEMA 4X (IP66/67/69) polyurethane painted cast aluminum or 316 stainless steel
Humidity Range 5 to 95% relative humidity, non-condensing
Linearity 0.015% Span, Span = 16 mA
Input Signal Up to 3 pairs of wiring terminals for input/output and digital communications
Power Supply 18VDC to 100VDC, 85VAC to 250VAC
Weight Integral: 6.48 lb (2.939 kg), Remote: 8.21 lb (3.724 kg)
Display/Interface Standard LCD panel, Bluetooth® option available
Features
Micro Motion T100T Coriolis Meter 1 Inch (DN25), Titanium Grade 9, 32 Ra Finish
Measurement Capabilities Direct, in-line measurement of mass flow, density, concentration, volume flow, and temperature
Construction Material Titanium for compatibility with most fluids
Connectivity Wide range of transmitter offerings
Hygienic Applications Improved 15 and 32 Ra surface, EHEDG certified, 3-A authorized, ASME BPE compliant
Approvals and Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Cleaning Easy to clean in place (CIP) and steam in place (SIP)
Installation Robust design; no need for straight runs or flow conditioning
Micro Motion 4700 Transmitter Configurable Inputs and Outputs
Functionality Reliable, accurate flow measurement with flexible outputs and diagnostics
Design Compact, integral mount saves electrical costs and space
Direct Measurement Improves process control; reduces measurement devices required
Smart Meter Verification™ Confidence in meter performance; zero verification for calibration
Measurement History Access Detailed insight into processes for troubleshooting and optimization
Multiphase Flow Indication Real-time events for greater process control
Density Measurement Reduces waste; historian records upsets every second for 11 days
Installation and Operation Minimized time and expertise needed
SIL Capability SIL2/3 capable per IEC 61508
Wireless Option THUM™ maximizes installation and operation flexibility
