Name: Micro Motion 2700 Multivariable Flow And Density Transmitter | Emerson 2700 Transmitter
SKU: 27284
Price: 2328.00 USD
Availability: InStock

Micro Motion 2700 Multivariable Flow And Density Transmitter | Emerson 2700 Transmitter

$2,328.00 – $2,526.00

The Micro Motion 2700 is a high-performance mass flow meter designed for industrial applications. Utilizing advanced Coriolis technology, it delivers precise measurements of mass flow, volume flow, and density for a variety of liquids and gases. Its robust construction ensures durability in harsh environments, while features like real-time data transmission enhance operational efficiency. The 2700 is an ideal choice for businesses looking for reliable and accurate flow measurement solutions.

Purchase details

Specifications of Micro Motion 2700

Output variables	Mass & volume flow
	Net product content / flow
	Temperature
	Density
	Concentration

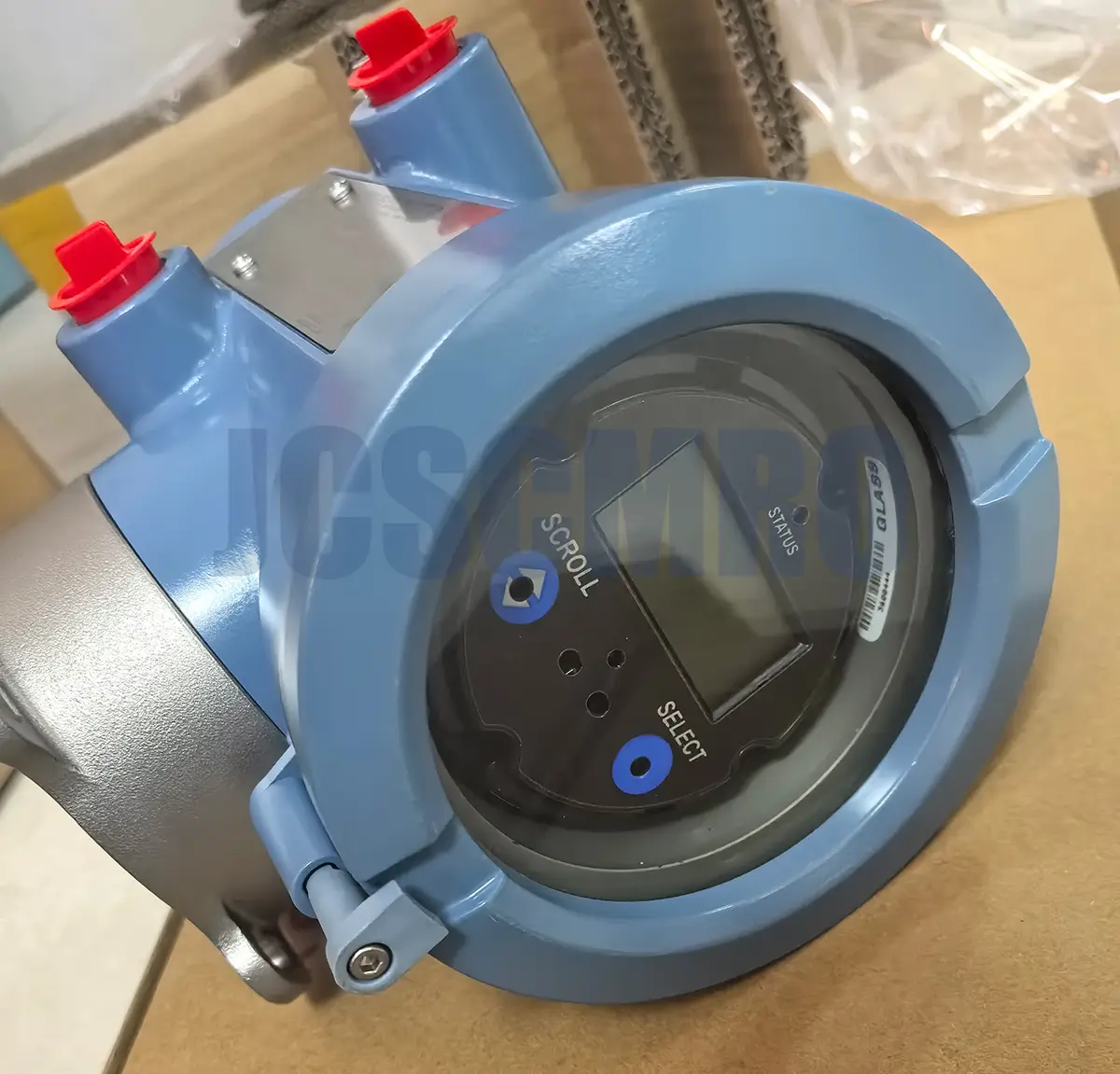

Local display	Standard user interface with 2-line LCD panel
	Two optical switches for local operation
	Glass or plastic lens options
Power	Self-switching AC/DC input, automatically recognizes supply voltage
	85 to 265 VAC, 50/60 Hz, 6 watts typical, 11 watts maximum
	18 to 100 VDC, 6 watts typical, 11 watts maximum
	Complies with low voltage directive 2006/95/EC per EN 61010-1 (IEC 61010-1) with amendment 2, and Installation (Overvoltage) Category II, Pollution Degree 2
Input/output signals	Not intrinsically safe
	Analog output option:
	One active 4–20 mA output
	One active frequency output
	Frequency output can be configured as a discrete output
	Configurable I/O option:
	One or two active 4-20 mA outputs
	One or two active/passive frequency outputs
	One or two active/passive discrete outputs
	One discrete input
	Intrinsically safe
	Analog output option:
	One passive 4-20 mA output
	One passive frequency output
	Frequency output can be configured as a discrete output
	Foundation™ fieldbus (Obsolete)
	optionally non-incendive
	One Foundation fieldbus H1 output
	PROFIBUS-PA (Obsolete)
	One PROFIBUS-PA output
	HART/WirelessHART
	Bell 202 signal is superimposed on the primary milliamp output
	WirelessHART available via THUM adapter
	HART communication is unavailable on Foundation fieldbus and PROFIBUS-PA transmitter versions
Mounting options	Field-mount
	Integrally mounted to a Micro Motion F-Series, R-Series, or H-Series sensor
	Remotely mounted to any 4-wire or 9-wire Micro Motion Coriolis sensor
Application types	Continuous process control
	Custody transfer
	Two-phase flow/entrained gas
	Meter verification
	SIS Certified
Hazardous approvals	Class I, Div. 1
	Class I, Div. 2
	Zone 1
	Zone 2

Products Models

Product Name	Action
Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 2700 Transmitter	GET A QUOTE
Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400S Sensor and 2700 Transmitter	GET A QUOTE
Micro Motion H-Series Hygienic Coriolis Meter Consisting of H400F Sensor and 2700 Transmitter	GET A QUOTE
Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 2700 Transmitter	GET A QUOTE
T100T and 2700	GET A QUOTE

Features

Maximize flexibility with integral or remote mounting
Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing
Lower wiring costs and install easily and quickly
Eliminate the need for additional instruments with concentration and net flow measurement
Rely on custody-transfer approval and certification for SIL2 and SIL3
Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Gain access to additional diagnostics and process information without added wiring costs with WirelessHART™
Simplify flow-meter access with rugged Class I, Division 1 / Zone 1 housing with an optional local operator interface
