Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 2400S Transmitter

$2,328.00

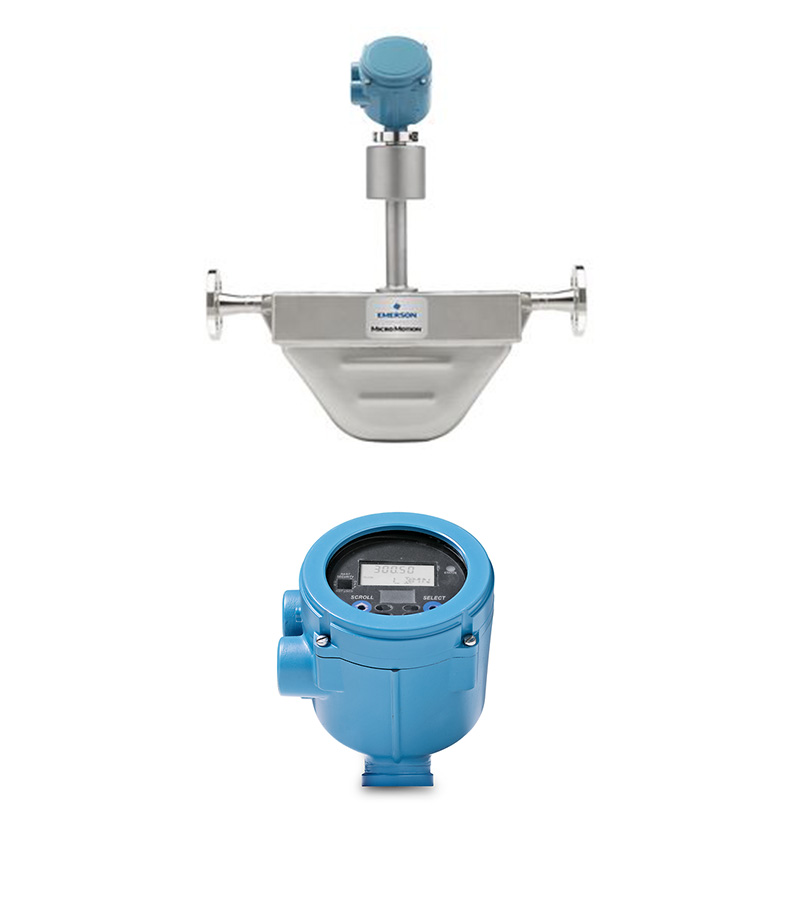

We offer the Micro Motion F-Series Coriolis Meter, consisting of the F050A sensor and 2400S transmitter, which delivers high-precision flow and density measurement capabilities. The F050A sensor is made of 316L stainless steel, designed to withstand high temperatures and pressures, ensuring reliability in harsh environments, with mass flow accuracy of up to ±0.10%. The compact 2400S transmitter supports multiple output variables and features Smart Meter Verification for real-time performance monitoring. It holds international certifications including CSA, ATEX, and IECEx, ensuring safety and compliance. We promise ample stock, quick delivery, and high-quality after-sales service to meet customers’ needs for efficient and reliable flow measurement equipment. Choose the Micro Motion F-Series to enhance your business operations.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 2400S Compact Transmitter Integral-Mount
Output Variables Mass & volume flow, Net product content/flow, Temperature, Density, Concentration
Local Display Standard user interface with 2-line LCD panel
Power Self-switching AC/DC input, 85–265 VAC or 18–100 VDC
Input/Output Signals (Analog) One active 4–20 mA output; configurable frequency or discrete outputs
Input/Output Signals (PROFIBUS-DP) Digital 2-way PROFIBUS-DP signal
Mounting Options Field mount, integral with sensor
Application Types Continuous process control, Two-phase flow/entrained gas, Meter verification
Hazardous Approvals C1D2, Zone 2
Features
Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 2400S Compact Transmitter Integral-Mount
Output Variables Mass & volume flow, Net product content/flow, Temperature, Density, Concentration
Local Display Standard user interface with 2-line LCD panel
Power Self-switching AC/DC input, 85–265 VAC or 18–100 VDC
Input/Output Signals (Analog) One active 4–20 mA output; configurable frequency or discrete outputs
Input/Output Signals (PROFIBUS-DP) Digital 2-way PROFIBUS-DP signal
Mounting Options Field mount, integral with sensor
Application Types Continuous process control, Two-phase flow/entrained gas, Meter verification
Hazardous Approvals C1D2, Zone 2
