Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 2400S Transmitter $2,328.00

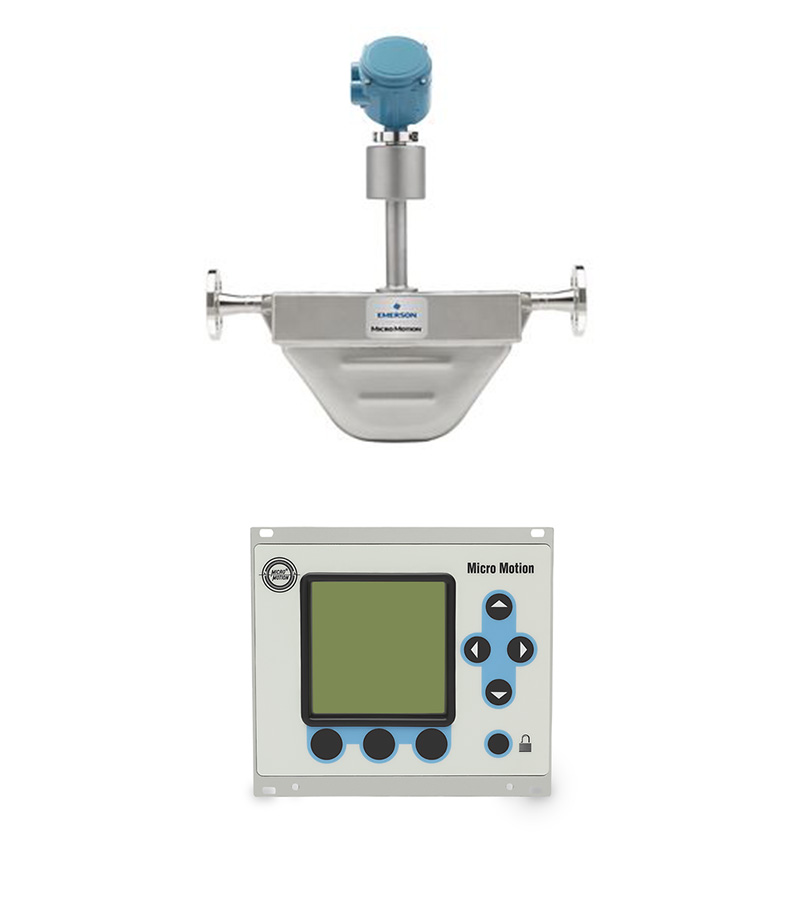

Micro Motion F-Series Coriolis Meter Consisting of F050A Sensor and 3500 Transmitter

$2,328.00

As a supplier of high-quality flow measurement solutions, we offer the Micro Motion F-Series Coriolis Meter, consisting of the F050A sensor and the 3500 transmitter. This sensor, made from 316L stainless steel, features high-temperature and high-pressure capabilities, ensuring a mass flow accuracy of ±0.20%, suitable for various fluid measurements. The 3500 transmitter provides flexible output options and an intuitive multi-line LCD display, reducing maintenance and operating costs while enhancing production efficiency. Equipped with extensive certifications and real-time process diagnostics, choosing the F-Series products will help you optimize production processes and improve product quality and operational efficiency.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Max Working Pressure 1,450 psig (100 barg)
Approvals and Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 3500 Controller And Transmitter Remote Rack/Panel-Mount
Output Variables Mass & volume flow, Net product content/flow, Temperature, Density, Concentration
Local Display Multi-line LCD panel, Backlit, 128 × 128 pixel
Power (AC Option) 85 to 265 VAC, 50/60 Hz, 30 VA
Power (DC Option) 18 to 30 VDC, 18 watts typical, 25 watts maximum
Input/Output Signals Two active 4–20 mA, Three discrete outputs, One 2-wire frequency output
Mounting Options Control-room DIN rail or panel-mount
Application Types Batch controller, Custody transfer, Two-phase flow/entrained gas, Meter verification
Hazardous Approvals Suitable for non-hazardous areas only
Features
Micro Motion F050A Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Temperature
Measurement Capabilities Highly accurate mass volume flow and density measurement in compact, drainable design
Material Options 316L Stainless Steel and C-22 nickel alloy in all sizes
Diagnostics Extensive process and meter diagnostics with on-board historian and logging
Approvals & Certifications CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR
Custody Transfer Approvals MID OIML R 117, NTEP, Measurement Canada, INMETRO Brazil
Response Rates Fastest response rates with accurate batch and process measurement using MVD technology
Measurement Integrity Real-time assurance with Smart Meter Verification
3D Model Interaction Interact with the 3D model to learn more about F-Series Coriolis Flow and Density Meters
Micro Motion 3500 Controller And Transmitter Remote Rack/Panel-Mount
Cost Reduction Decrease labor, maintenance, and operating costs with transmitter functions and PLC capabilities
Efficiency Improvement Increase efficiency, accelerate throughput, and improve product quality
Configuration Full configuration capabilities eliminate the need for external tools
User Interface Large, programmable display with descriptive alarms for easy setup, control, and operation
Uptime Maximization Maximize uptime and process consistency with MVD technology
