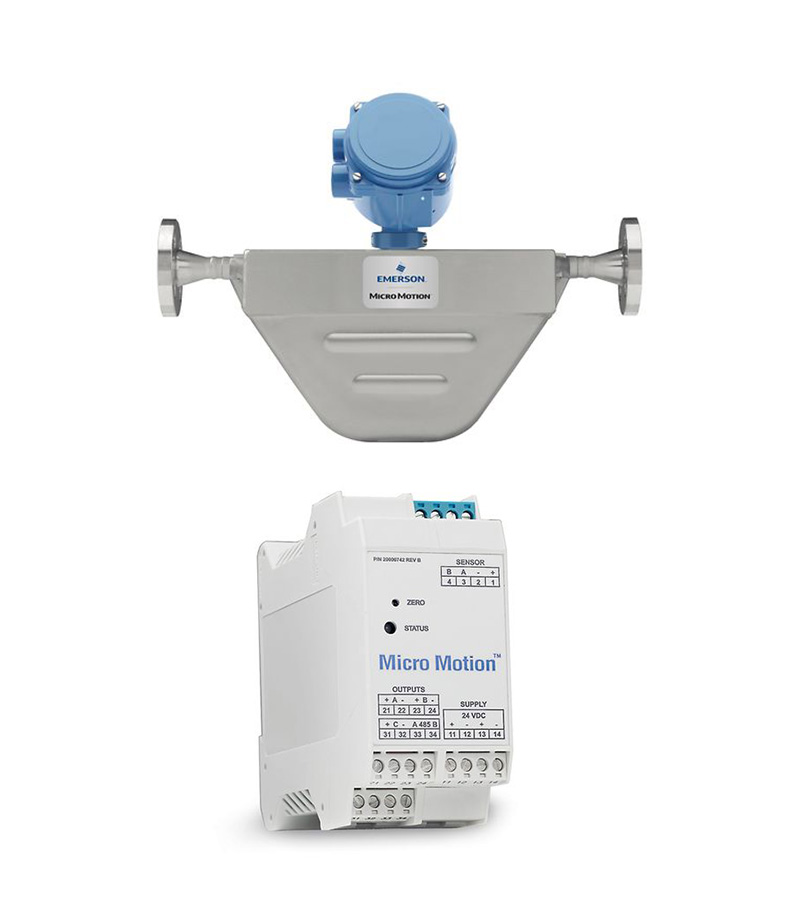

| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 5,000 psig (344 barg) |
| Meter Approvals | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 1500 Compact Control Room Single Variable Flow Transmitter | |
| Available Outputs | Model 1500: One flow rate variable (in milliamp and frequency/pulse output) Model 2500: Simultaneous monitoring of multiple flow variables |
| Housing | Polyamide PA 6.6 |
| Power | Minimum 19.2 to 28.8 VDC, 6.3 watts, Meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements |
| Input/Output Signals | One active 4–20 mA output, One active frequency output, HART Bell 202 signal superimposed on the primary milliamp output |
| Mounting Options | Remote-mount control room only, mounted on 35 mm rail (rail must be grounded) |
| Application Types | Continuous process control, Two-phase flow/entrained gas, Filling & dosing, Meter verification |
| Hazardous Approvals | Suitable for non-hazardous environments only |
