Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 5700 Transmitter $2,328.00
Back to products
Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 4200 Transmitter $2,328.00

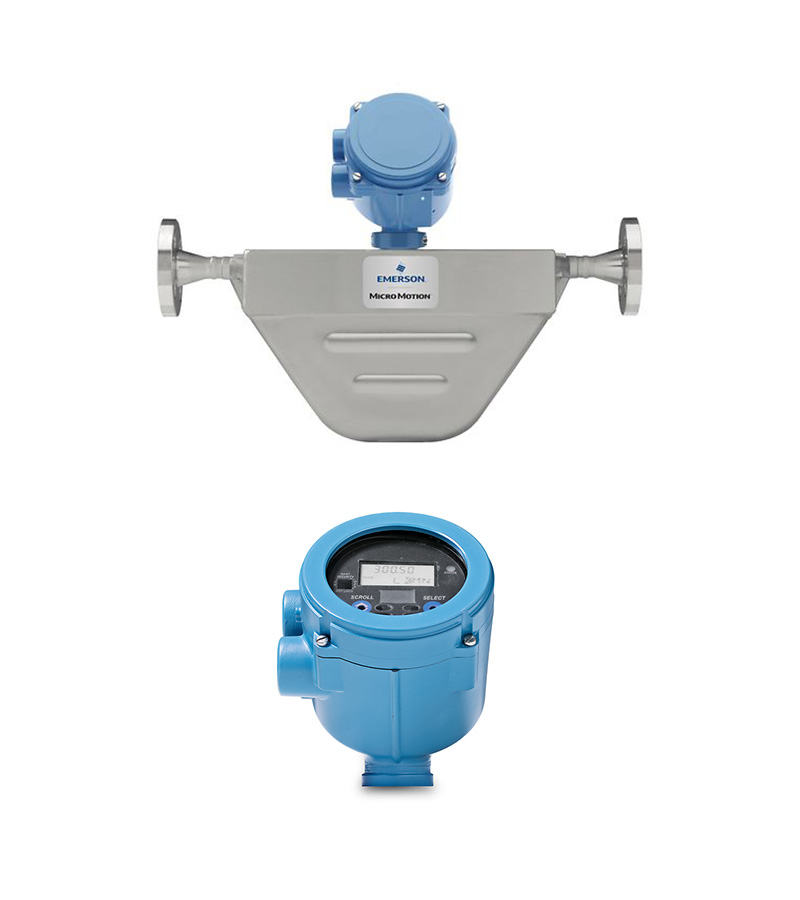

Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 2400S Transmitter

$2,328.00

As a supplier, we offer the Micro Motion F-Series Coriolis Meter, consisting of the F050P sensor and the 2400S transmitter, ensuring exceptional flow measurement accuracy and stability. The F050P is made of corrosion-resistant 316L stainless steel, capable of withstanding pressures up to 5000 psig, while the 2400S transmitter features multiple output options and an intuitive display interface. Our robust supply chain and ample inventory enable quick fulfillment of customer needs, complemented by comprehensive technical support and high-quality after-sales service to keep your production line running efficiently. Choose our products for precise measurements and outstanding service.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard)
±0.15% of rate (optional)
±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard)
±0.15% of rate (optional)
±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard)
±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 5,000 psig (344 barg)
Meter Approvals UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 2400S Compact, Integral-Mount Transmitter
Output Variables Mass & volume flow, net product content/flow, temperature, density, concentration
Local Display Standard user interface with 2-line LCD panel
Power Self-switching AC/DC input, automatically recognizes supply voltage
85–265 VAC, 50/60 Hz, 4 watts typical, 7 watts maximum
18–100 VDC, 4 watts typical, 7 watts maximum
Input/Output Signals (Analog Output Option) Channel A: One active 4–20 mA output (not intrinsically safe)
Channel B (configurable): One active or passive frequency output, one active or passive discrete output, one active or passive discrete input
Input/Output Signals (PROFIBUS-DP Option) Digital 2-way PROFIBUS-DP signal
Input/Output Signals (DeviceNet Option) Digital 2-way DeviceNet signal (Now Obsolete)
HART Bell 202 signal is superimposed on the primary milliamp output
HART communication is not available on PROFIBUS-DP and DeviceNet transmitter versions
Mounting Options Field mount, integral with sensor
Application Types Continuous process control, two-phase flow/entrained gas, meter verification
Hazardous Approvals C1D2, Zone 2
Features
Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Key Features Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design.
Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes.
Available with a rupture disk or purge fitting case.
Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging.
Broad range of meter approvals and certifications, including CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR.
Custody Transfer Approvals from MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil.
Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology.
Gain real-time and in-process measurement integrity assurance with Smart Meter Verification.
Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters.
Micro Motion 2400S Compact, Integral-Mount Transmitter
Key Features Receive diagnostics for performance under entrained gas and batching from empty applications with MVD digital processing.
Gain real-time and in-process measurement integrity assurance with Smart Meter Verification.
Employ the best two-phase flow capability for batching, loading, and entrained gas applications.
Eliminate the need to remove the transmitter cover with optical buttons on the display.
Rely on Class 1, Div. 2 (Zone 2) hazardous area approval (sensor and transmitter).
