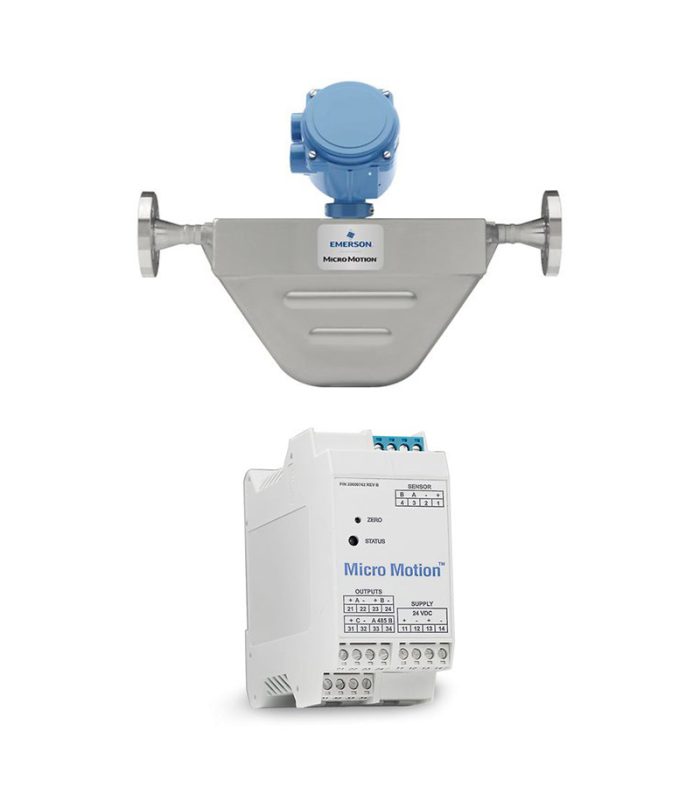

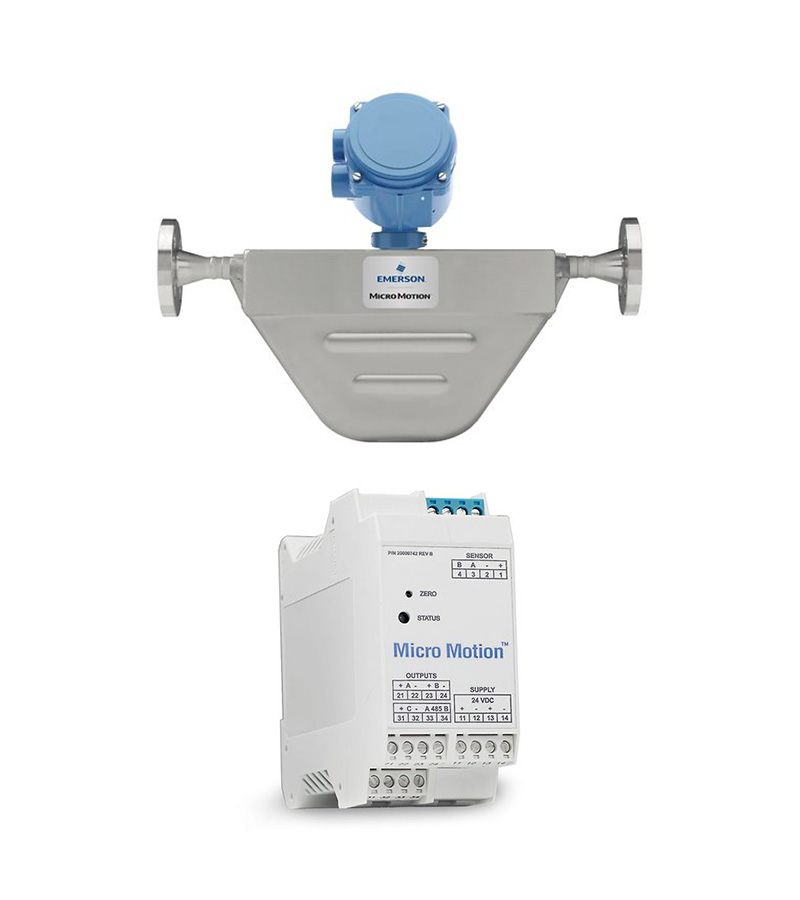

| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 5,000 psig (344 barg) |
| Meter Approvals, Calibrations, and Certifications | • UL • CSA • IECEx • NEPSI • ATEX • Ingress Protection • EMC effects |
| Micro Motion 2500 Compact Control Room Multivariable Flow and Density Transmitter | |
| Output Variables | • Mass & Volume Flow • Net Product Content / Flow • Temperature • Density • Concentration |
| Local Display | None |
| Power | • Minimum 19.2 to 28.8 VDC • 6.3 watts • Meets Installation (Overvoltage) Category II, Pollution Degree 2 requirements |
| Input/Output Signals | • One active 4–20 mA output • One active frequency output HART Bell 202 signal is superimposed on the primary milliamp output |
| Mounting Options | Mounted on 35 mm rail (rail must be grounded) |
| Application Types | • Continuous Process Control • Two-Phase Flow/Entrained Gas • Meter Verification |
| Hazardous Approvals | Suitable for non-hazardous environments only |
