Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 3500 Transmitter
Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 3500 Transmitter $2,328.00
Back to products
Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 5700 Transmitter $2,328.00

Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 2700 Transmitter

$2,328.00

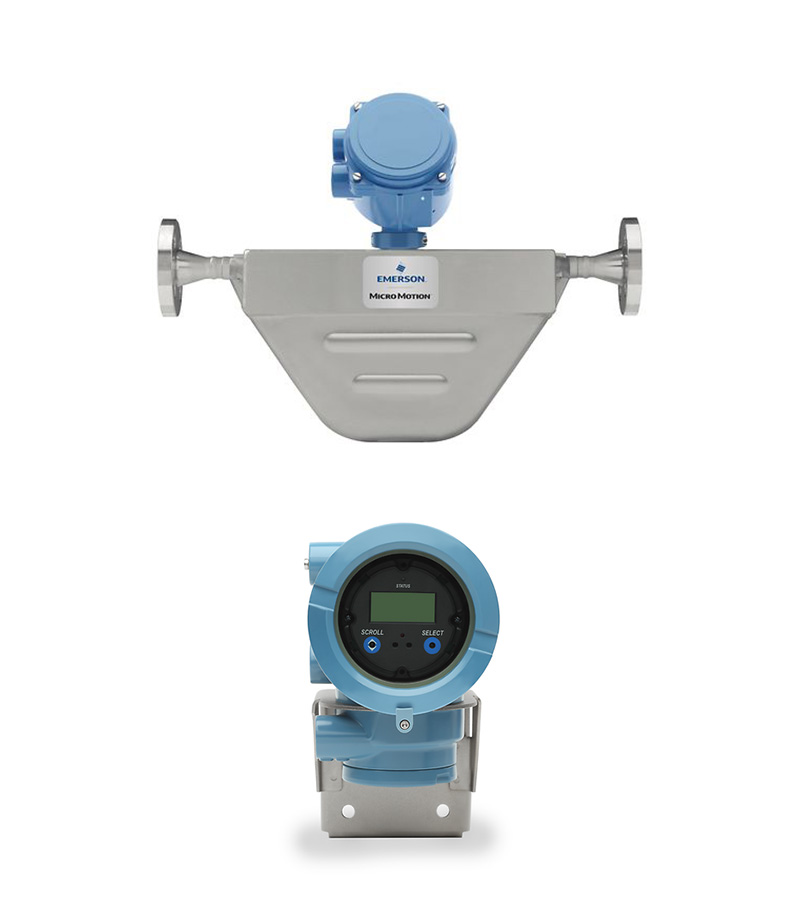

As a supplier, we offer the Micro Motion F-Series Coriolis Meter, consisting of the F050P sensor and the 2700 transmitter, designed to achieve high-precision mass and volume flow measurements. The F050P sensor is made of 316L stainless steel and boasts excellent pressure resistance, making it suitable for various fluid applications, with flow accuracy of up to ±0.20%. The 2700 transmitter supports multiple output variables and features robust monitoring and diagnostic capabilities, providing real-time data on temperature, density, and concentration to meet diverse installation needs. We are committed to providing high-quality after-sales service and technical support, ensuring a smooth experience for our customers. Choosing our products will greatly enhance the reliability and efficiency of your process control.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Maximum Working Pressure 5,000 psig (344 barg)
Approvals & Certifications UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter
Output Variables Mass & volume flow, net product content/flow, temperature, density, concentration
Local Display Standard user interface with 2-line LCD panel, two optical switches
Power Self-switching AC/DC input, 85 to 265 VAC, 18 to 100 VDC
Input/Output Signals Not intrinsically safe, various analog output options
Mounting Options Field-mount, integrally or remotely mounted to Micro Motion sensors
Application Types Continuous process control, custody transfer, two-phase flow, meter verification
Hazardous Approvals Class I, Div. 1; Class I, Div. 2; Zone 1; Zone 2
Features
Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Measurement Capabilities Highly accurate mass volume flow and density measurement in compact, drainable design
Material Options Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes
Available Configurations Rupture disk or purge fitting case
Diagnostics Extensive process and meter diagnostics with on-board historian and logging
Approvals & Certifications CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, NAMUR
Custody Transfer Approvals MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, INMETRO Brazil
MVD Transmitter Technology Fastest response rates and accurate batch and process measurement
Measurement Integrity Smart Meter Verification for real-time and in-process measurement integrity assurance
3D Model Interaction Interact with our 3D model to learn more about F-Series Coriolis Flow and Density Meters
Micro Motion 2700 Field And Integral-Mount Multivariable Flow And Density Transmitter
Mounting Options Integral or remote mounting for maximum flexibility
Diagnostics Performance diagnostics for entrained gas and batching from empty applications with MVD digital processing
Installation Benefits Lower wiring costs; easy and quick installation
Measurement Capabilities Concentration and net flow measurement without additional instruments
Custody-Transfer Approval Approval and certification for SIL2 and SIL3
Wireless Diagnostics Access to additional diagnostics and process information via WirelessHART™ without added wiring costs
Housing Rugged Class I, Division 1 / Zone 1 housing with optional local operator interface
