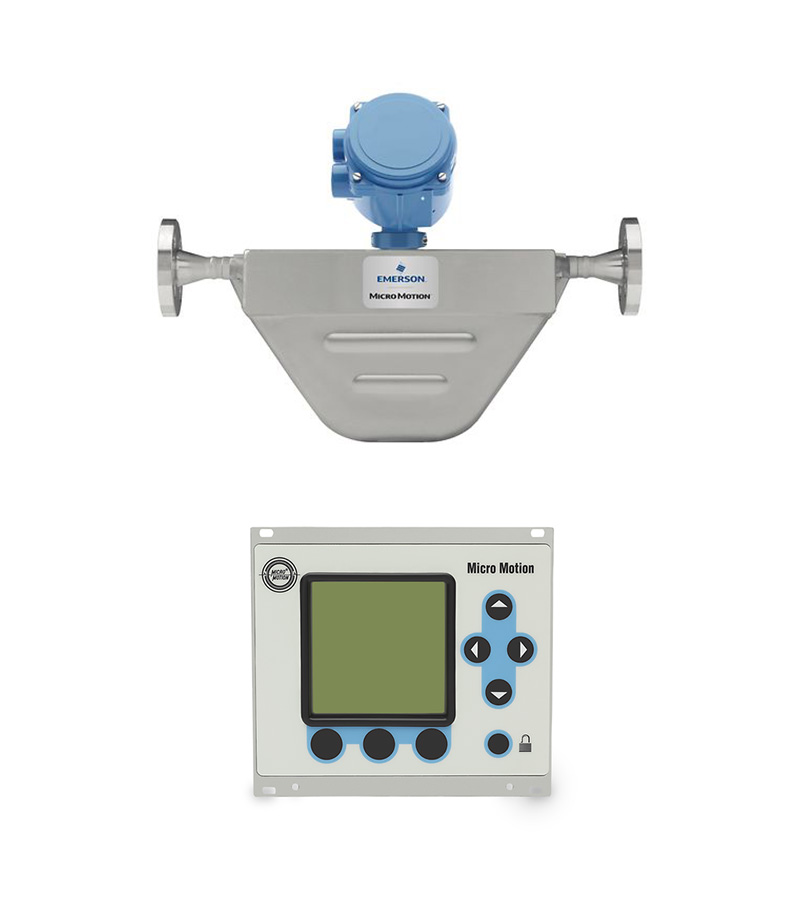

| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard) ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Sensor Maximum Working Pressure | 5,000 psig (344 barg) |
| Meter Approvals, Calibrations, and Certifications | • UL • CSA • IECEx • NEPSI • ATEX • Ingress Protection • EMC effects |
| Micro Motion 3500 Controller And Transmitter | Remote Rack/Panel-Mount |
| Output Variables | Mass & volume flow Net product content / flow Temperature Density Concentration |
| Local Display | Multi-line LCD panel Backlit LCD, 128 × 128 pixel, bit map Adjustable contrast Non-glare, chemical-resistant acrylic lens Large push buttons with tactile feedback Software-defined function keys |
| Power | AC option: 85 to 265 VAC, 50/60 Hz, 30 VA DC option: 18 to 30 VDC, 18 watts typical, 25 watts maximum |
| Input/Output Signals | Two active 4–20 mA Three discrete outputs One 2-wire frequency output One 2-wire frequency input Two discrete momentary inputs |
| HART/WirelessHART | Bell 202 signal superimposed on the primary milliamp output |
| Mounting Options | Control-room DIN rail or panel-mount |
| Application Types | Batch controller Custody transfer Two-phase flow/entrained gas Meter verification |
| Hazardous Approvals | Suitable for non-hazardous areas only |
