Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 1500 Transmitter $2,328.00
Back to products
Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 1700 Transmitter $2,328.00

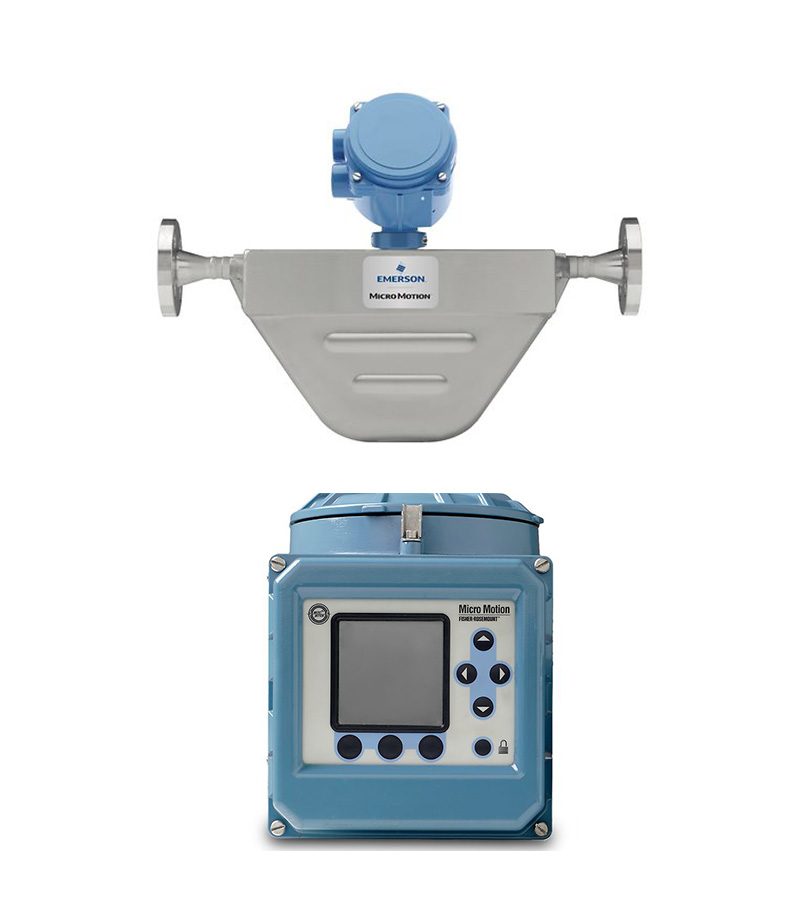

Micro Motion F-Series Coriolis Meter Consisting of F050P Sensor and 3700 Transmitter

$2,328.00

As a supplier, our Micro Motion F-Series Coriolis Meter, which combines the F050P sensor and 3700 transmitter, offers exceptional quality and high-precision flow measurement. The durable F050P sensor provides a liquid flow accuracy of ±0.20% and a gas flow accuracy of ±0.5%. The 3700 transmitter features multiple output options and real-time monitoring capabilities, suitable for various industrial applications, and is certified by UL and ATEX. By choosing us, you will benefit from robust supply chain support, superior technology, comprehensive after-sales service, and competitive pricing to boost your business development.

Brand:Micro Motion
Purchase details
  • Free Online Product Selection Service
  • Fast Quoting & Competitive pricing
  • Min. order: 1 piece & 2-Year Warranty
  •   [email protected]
Quote Now
Whatsapp
Category: Tags: , ,
Description
Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 5,000 psig (344 barg)
Meter Approvals UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 3700 Controller And Transmitter Remote Field-Mount
Output Variables Mass & volume flow,
Net product content / flow,
Temperature,
Density,
Concentration
Local Display Multi-line LCD panel, Backlit LCD, 128 × 128 pixel
Power AC option: 85 to 265 VAC, 50/60 Hz, 30 VA
DC option: 18 to 30 VDC, 18 watts typical, 25 watts maximum
Input/Output Signals Two active 4–20 mA,
Three discrete outputs,
One 2-wire frequency output,
One 2-wire frequency input,
Two discrete momentary inputs
Mounting Options Remote field-mount
Application Types Batch controller,
Custody transfer,
Two-phase flow/entrained gas,
Meter verification
Hazardous Approvals UL, CSA, ATEX, NEPSI
Features
Micro Motion F050P Coriolis Meter 1/2 Inch (DN15), 316L Stainless Steel, High Pressure
Key Features Achieve highly accurate mass volume flow and density measurement in compact, drainable design.
Available in 316L Stainless Steel and C-22 nickel alloy.
Options for rupture disk or purge fitting case.
Extensive process and meter diagnostics with on-board historian and logging.
Broad approvals: CSA, ATEX, IECEx, Ingress Protection 66/67, NAMUR, etc.
Custody Transfer Approvals: MID OIML R 117, NTEP, Measurement Canada, INMETRO Brazil.
Fast response rates with unmatched MVD transmitter technology.
Smart Meter Verification for real-time measurement integrity.
Mass Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Mass Flow Repeatability (Liquid) ±0.050% of rate
Volume Flow Accuracy (Liquid) ±0.20% of rate (standard), ±0.15% of rate (optional), ±0.10% of rate (optional)
Volume Flow Repeatability (Liquid) ±0.050% of rate
Mass Flow Accuracy (Gas) ±0.5% of rate
Mass Flow Repeatability (Gas) ±0.25% of rate
Density Accuracy (Liquid) ±0.002 g/cm³ (2.0 kg/m³) (standard), ±0.001 g/cm³ (1.0 kg/m³) (optional)
Temperature Accuracy ±1 °C ±0.5% of reading
Sensor Maximum Working Pressure 5,000 psig (344 barg)
Meter Approvals UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects
Micro Motion 3700 Controller And Transmitter Remote Field-Mount
Key Features Decrease labor, maintenance, and operating costs with transmitter functions and PLC capabilities.
Increase efficiency, accelerate throughput, and improve product quality.
Full configuration capabilities eliminate external tools.
Large, programmable display with descriptive alarms for easy setup and operation.
MVD technology maximizes uptime and process consistency.
Output Variables Mass & volume flow,
Net product content / flow,
Temperature,
Density,
Concentration
Local Display Multi-line LCD panel,
Backlit LCD, 128 × 128 pixel,
Adjustable contrast,
Non-glare, chemical-resistant lens,
Large push buttons with tactile feedback
Power Options AC: 85 to 265 VAC, 50/60 Hz, 30 VA
DC: 18 to 30 VDC, 18 watts typical, 25 watts maximum
Input/Output Signals Two active 4–20 mA,
Three discrete outputs,
One 2-wire frequency output,
One 2-wire frequency input,
Two discrete momentary inputs
Mounting Options Remote field-mount
Application Types Batch controller,
Custody transfer,
Two-phase flow/entrained gas,
Meter verification
Hazardous Approvals UL, CSA, ATEX, NEPSI
