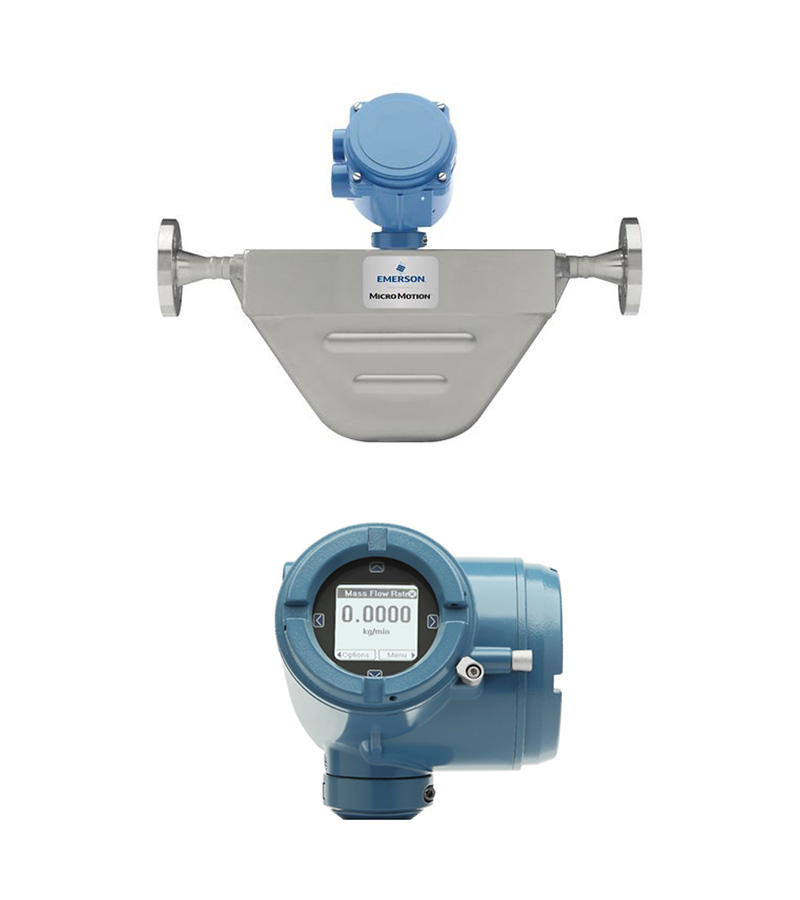

| Micro Motion F050P Coriolis Meter | 1/2 Inch (DN15), 316L Stainless Steel, High Pressure |
| Mass Flow Accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Mass Flow Repeatability (Liquid) | ±0.050% of rate |
| Volume Flow Accuracy (Liquid) | ±0.20% of rate (standard) ±0.15% of rate (optional) ±0.10% of rate (optional) |
| Volume Flow Repeatability (Liquid) | ±0.050% of rate |
| Mass Flow Accuracy (Gas) | ±0.5% of rate |
| Mass Flow Repeatability (Gas) | ±0.25% of rate |
| Density Accuracy (Liquid) | ±0.002 g/cm³ (2.0 kg/m³) (standard) ±0.001 g/cm³ (1.0 kg/m³) (optional) |
| Temperature Accuracy | ±1 °C ±0.5% of reading |
| Maximum Working Pressure | 5,000 psig (344 barg) |
| Approvals and Certifications | UL, CSA, IECEx, NEPSI, ATEX, Ingress Protection, EMC effects |
| Micro Motion 4200 2-Wire Transmitter | |
| Local Display | Graphical display with optional backlight setting Four-button capacitive touch controls Supports multiple languages: English, German, French, Spanish, Portuguese, Russian, Chinese, Japanese |
| Power | 2-wire loop-powered transmitter Minimum 17.75 V lift off voltage |
| Input/Output Signals | Up to 2 output channels: Channel A: loop-powered 4-20mA/HART Channel B: externally-powered configurable for 4-20mA, frequency output or discrete output (Licensable Option) |
| WirelessHART | Available with THUM adapter |
| Mounting Options | Field-mount Integrally mounted to various Micro Motion sensors Remotely mounted 9-wire with mounting bracket |
| Application Types | Smart Meter Verification, Concentration measurement, API Referral |
| Hazardous Approvals | Class I, Div. 1 Class I, Div. 2 Zone 1 Zone 2 Intrinsically Safe Explosion Proof |
